EVDC - DC Fast Chargers

EVDC FEATURES

DC fast chargers (Level 3) with power output from 60kW to 360kW
True simultaneously charging with the capability to charge two vehicles at the same time
Future-proof design with 1000 V max output
Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 compliant
Liquid-cooled ultra-fast 360kW EV charging stations available
Driver friendly with a 10" LCD touchscreen display and simple to user interface
Start modes include plug-n-play, RFID, OCPP and optional POS
Ethernet, 4G and Wi-Fi connections available
IP54 rated enclosure ideal for a wide range of locations and conditions
CHAdeMO, NACS, and CCS (type 1 or 2) connectors and charging cables
Designed for easy installation and maintenance
Available with different power and voltage configurations for global markets

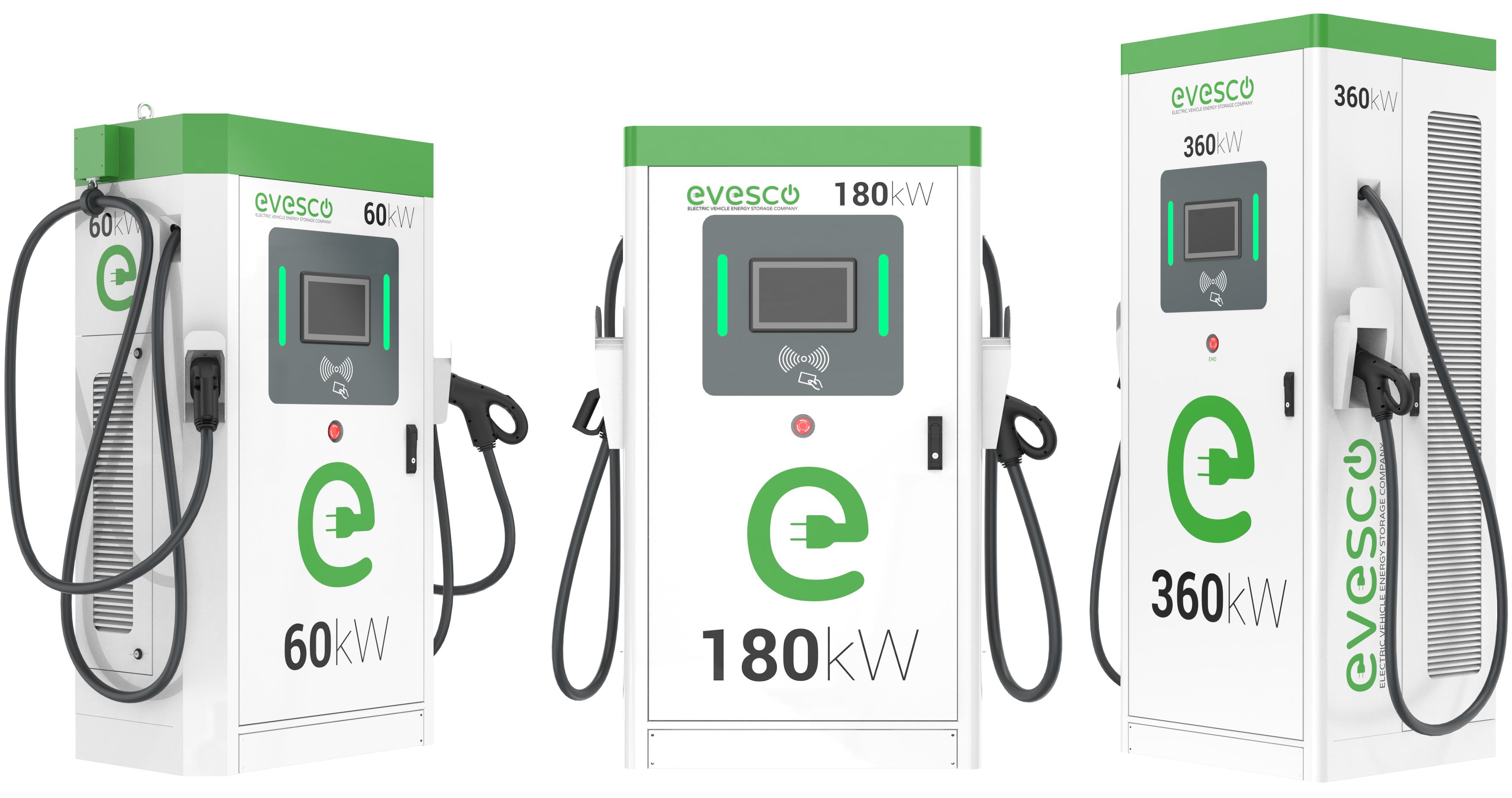

DC FAST CHARGERS

EVESCO’s EVDC series are Direct Current Fast Chargers (DCFC), often called Level 3 EV chargers. DC fast chargers are currently the fastest charging option available for electric vehicles, they use commercial grade AC power which is converted within the charger into DC power to then distribute directly to the vehicle’s battery, and as the power is already converted to DC, it makes it possible to deliver more power, faster. DC fast-charging stations are the ideal choice for locations where EVs must gain the maximum range in the shortest possible time. With power outputs available from 60kW to 360kW and a variety of EV charging connector configurations available, EVESCO has the right EV charging solutions to meet your charging needs.

Our DC fast chargers deliver true simultaneous EV charging and can charge two electric vehicles at the same time through intelligent power splitting. If one car uses the charging station, it will receive up to the full kW power; if a second vehicle starts to use the other charging cable, the power will be split between the two cars. The EVDC series of EV chargers have OCPP 1.6 and ISO 15118 compliance, multiple connectivity levels, and various user interaction options. With a wide voltage output range from 300 to 1000Vdc these chargers can effectively charge electric vehicles utilizing both 400V and 800V architectures.

EVDC series

EVDC-120EU

The 2nd generation EVDC-120EU is a 120kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the...

Specs:

Output Power: 120kW (can split power)
Output Current: 300A
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-120EU

EVDC-120NA

The 2nd generation EVDC-120NA is a 120kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger...

Specs:

Output Power: 120kW (can split power)
Output Current: 300A
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1

View EVDC-120NA

EVDC-150EU

The 2nd generation EVDC-150EU is a 150kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the...

Specs:

Output Power: 150kW (can split power)
Output Current: 300A
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-150EU

EVDC-150NA

The 2nd generation EVDC-150NA is a 150kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger...

Specs:

Output Power: 150kW (can split power)
Output Current: 300A
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1

View EVDC-150NA

EVDC-180EU

The EVDC-180EU is a 180kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself,...

Specs:

Output Power: 180kW (can split power)
Output Current: 300A
Supply Input: 400VAC (+/- 10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-180EU

EVDC-180NA

The EVDC-180NA is a 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in...

Specs:

Output Power: 180kW (can split power)
Output Current: 300A
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1

View EVDC-180NA

EVDC-360EU

The EVDC-360EU is a 360kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself,...

Specs:

Output Power: 360kW (can split power)
Output Current: 400A
Supply Input: 400VAC (+/- 10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-360EU

EVDC-360NA

The EVDC-360NA is a 360kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in...

Specs:

Output Power: 360kW (can split power)
Output Current: 400A
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1

View EVDC-360NA

EVDC-360X EU

The EVDC-360X EU is a twin 180kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger...

Specs:

Output Power: 180kW + 180kW
Output Current: 300A each
Supply Input: 400VAC (+/- 10%) / 50Hz
Socket Type: CCS 2 + CCS 2

View EVDC-360X EU

EVDC-360X NA

The EVDC-360X NA is a twin 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself,...

Specs:

Output Power: 180kW + 180kW
Output Current: 300A each
Supply Input: 480VAC / 60Hz
Socket Type: CCS 1 + CCS 1

View EVDC-360X NA

EVDC-60EU

The 2nd generation EVDC-60EU is a 60kW DC fast charger that utilizes a 400VAC (+/- 10%), 60Hz three-phase input converting AC to DC within the...

Specs:

Output Power: 60kW (can split power)
Output Current: 125A
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-60EU

EVDC-60NA

The 2nd generation EVDC-60NA is a 60kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself,...

Specs:

Output Power: 60kW (can split power)
Output current: 125A
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO + CCS 1 or dual CCS 1

View EVDC-60NA

EVDC-90EU

The EVDC-90EU is a 90kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself,...

Specs:

Output Power: 90kW (can split power)
Output Current: 125A
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-90EU

EVDC-90NA

The EVDC-90NA is a 90kW DC fast charger that utilizes a 480VAC (+/- 10%), 60Hz three-phase input converting AC to DC within the charger itself,...

Specs:

Output Power: 90kW (can split power)
Output Current: 125A
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1

View EVDC-90NA

FASTER EV CHARGING IS HERE

DC fast chargers are considerably faster than Level 2 AC chargers and take between 15 and 45 minutes to charge an electric vehicle battery, up to 80% for most passenger EVs. By installing EVESCO's DC fast chargers, you can help eliminate one of the main barriers to EV adoption, range anxiety, while at the same time positioning your business as a green leader in sustainability.

Suppose you are looking to introduce DC fast charging but have limited grid connection or high demand chargers, EVESCO can help. Combining DC fast charging stations with battery energy storage can increase your power output and dramatically reduce your demand charges without needing costly upgrades to your grid connection. Please speak with one of our experts to find out more.

To encourage EV adoption and investment in EV charging infrastructure, governments, and utility companies have created various incentive and funding programs that subsidize and promote the installation and deployment of EV charging stations. EVESCO can help guide you through these incentive programs to minimalize your costs.
