EVDC-S - EV FAST CHARGERS WITH MEDIA SCREEN

EVDC-S FEATURES

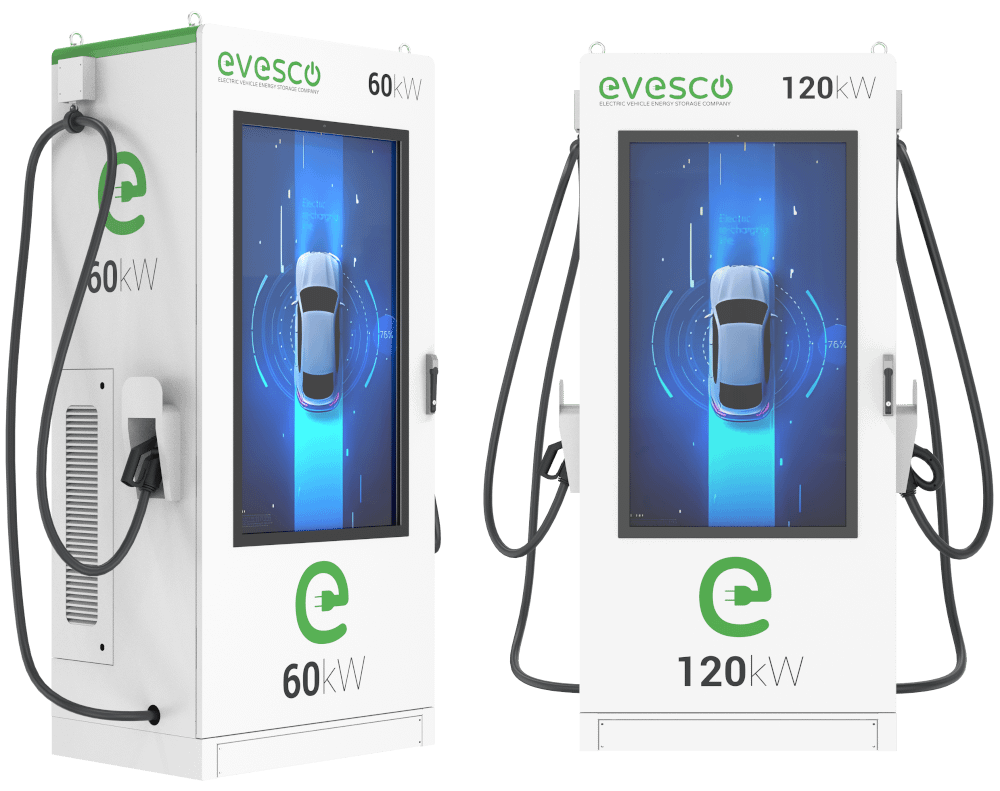

DC fast chargers with 55-inch media display and power output of 60kW and 120kW
Share customized content applicable to your venue or generate additional revenue from advertising
True simultaneous charging - charge two cars at the same time
Future-proof design with 1000V max output
Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
Start modes include plug-n-play, RFID, QR code and optional POS
Ethernet, 4G and Wi-Fi connections available
IP54 rated enclosure ideal for a wide range of locations and conditions
CHAdeMO, NACS, and CSS (type 1 or 2) connectors and plugs
Driver friendly with a 10" LCD touchscreen and simple to use interface
Available with different power and voltage configurations for global markets

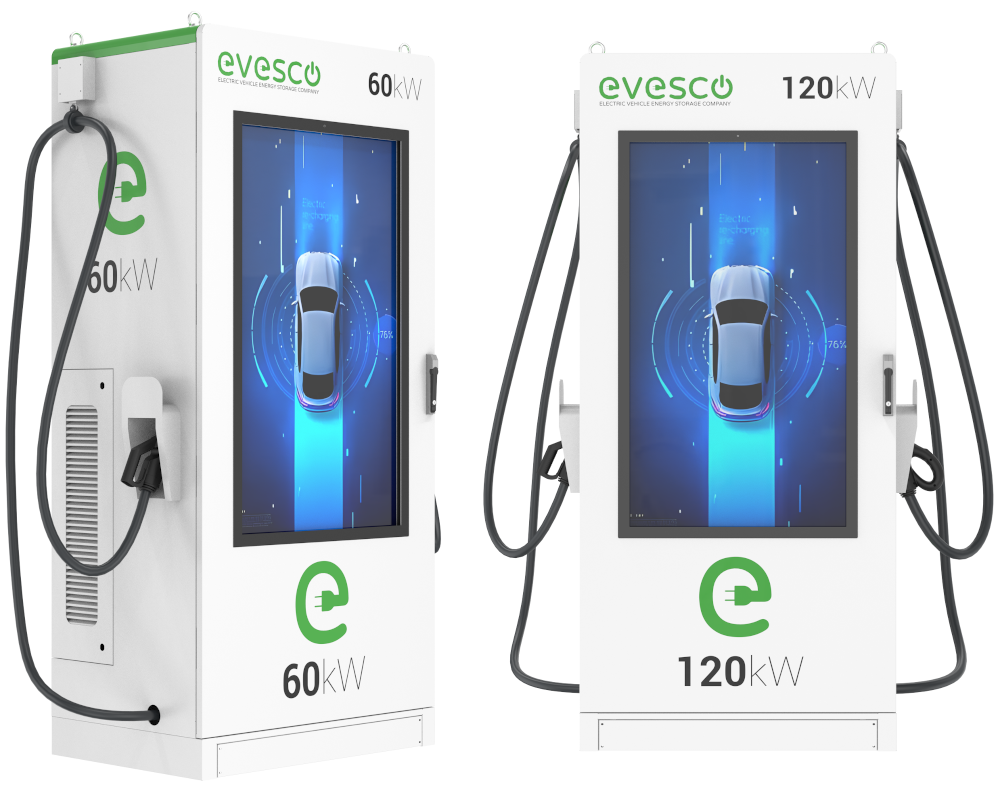

FAST EV CHARGERS WITH MEDIA SCREENS

EVESCO's EVDC-S series of fast EV chargers have been designed to attract more visitors to your business and engage them with customized content utilizing a large media screen. You can use the large media screen for static content or videos to increase brand awareness, promote products, relay important messages, or generate advertising revenue. You can control what is displayed and when via a feature-rich content management platform.

The EVDC-S series utilize Direct Current Fast Charging (DCFC) technology, which is the fastest type of electric vehicle charging available on the market today. These fast EV chargers are a lot quicker than Level 2 chargers and only take between 15 and 45 minutes to charge most passenger electric vehicles up to 80%. With a wide voltage output range from 300 to 1000Vdc these chargers are future-proof and can charge electric vehicles accepting both 400V and 800V charging.These are the ideal chargers for high-traffic or high-footfall locations such as retail parks, fuel retailers, supermarkets, and malls.

EVDC-S Series

EVDC-120S-EU

The EVDC-S series of fast EV chargers have been designed to attract high-value electric vehicle drivers to your business. The EVDC-120S-EU is a 120kW...

Specs:

Output Power: 120kW (can split power)
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-120S-EU

EVDC-120S-NA

The EVDC-S series of fast EV chargers have been designed to attract high-value electric vehicle drivers to your business. The EVDC-120S-NA is a 120kW...

Specs:

Output Power: 120kW (can split power)
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1

View EVDC-120S-NA

EVDC-60S-EU

The EVDC-S series of fast EV chargers have been designed to attract high-value electric vehicle drivers to your business. The EVDC-60S-EU is a 60kW...

Specs:

Output Power: 60kW (can split power)
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: CHAdeMO + CCS 2 or dual CCS 2

View EVDC-60S-EU

EVDC-60S-NA

The EVDC-S series of fast EV chargers have been designed to attract high-value electric vehicle drivers to your business. The EVDC-60S-NA is a 60kW...

Specs:

Output Power: 60kW (can split power)
Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1

View EVDC-60S-NA

FASTER EV CHARGING IS HERE

DCFC type EV chargers use commercial grade AC power which is converted within the charger into DC power to then distribute directly to the vehicle’s battery and as the power is already converted to DC it makes it possible to deliver more power, faster. Fast EV chargers like these are great in locations where EVs need to gain the maximum amount of range in the shortest possible time.

By installing EVESCO's fast EV chargers you will help reduce range anxiety, one of the biggest barriers to electric vehicle adoption, while at the same time positioning your business as a leader in sustainability and green initiatives.

If you are looking to introduce fast EV charging but have limited grid connection or high demand chargers, EVESCO can help. By combining fast EV charging stations with battery energy storage we can increase your power output and dramatically reduce your demand charges without the need for costly upgrades to your grid connection. Speak with one of our experts to find out more.

To encourage EV adoption and investment into EV charging infrastructure, governments, and utility companies have created various incentive and funding programs that subsidize and encourage the installation and deployment of EV charging stations. EVESCO can help guide you through these incentive programs to minimalize your costs.
