DCG12-17

DCG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 17Ah Deep cycle gel battery
  • Thixotropic gel electrolyte for enhanced performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

DCG12-17

Nominal voltage:

12V

Capacity @20HR (AH):

17.00 Ah

Capacity @10HR (AH):

15.80 Ah

Weight:

5.8kg / 12.8lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

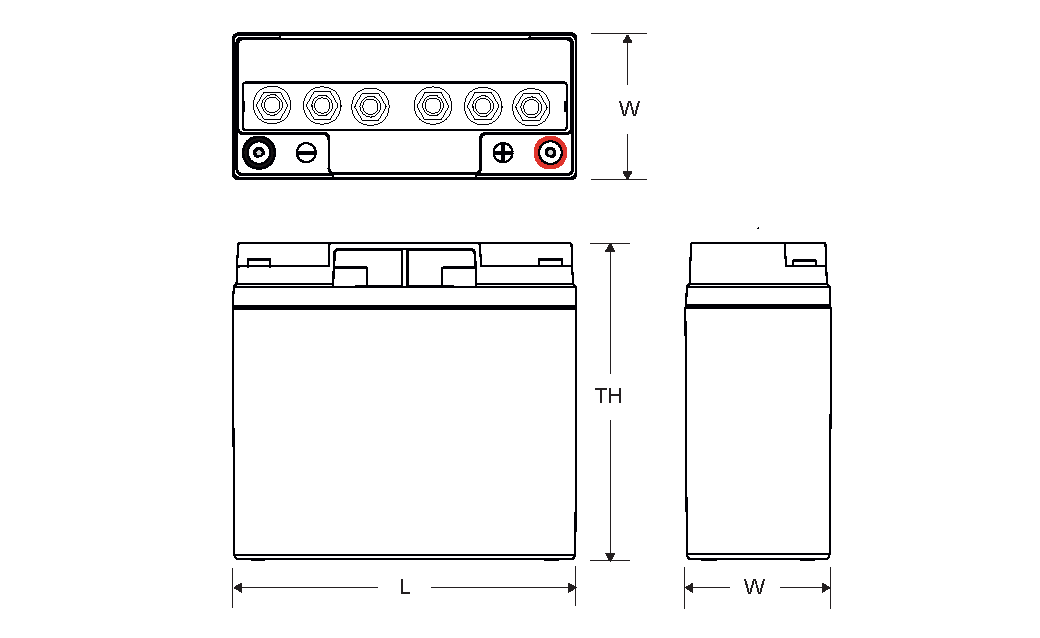

Dimensions

Length:

7.15'' / 181.5mm

Width:

3.03'' / 77mm

Height:

6.59'' / 167.5mm

Recommended Charger:

T12
Terminal Info
  • 12V 17Ah Deep cycle gel battery
  • Thixotropic gel electrolyte for enhanced performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

DCG12-17

Nominal voltage:

12V

Capacity @20HR (AH):

17.00 Ah

Capacity @10HR (AH):

15.80 Ah

Weight:

5.8kg / 12.8lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

7.15'' / 181.5mm

Width:

3.03'' / 77mm

Height:

6.59'' / 167.5mm

Recommended Charger:

T12
Terminal Info

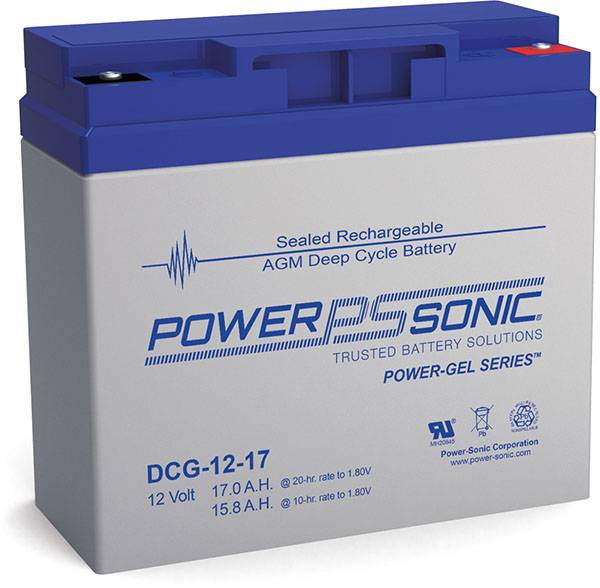

Product Image

This model replaces the PSGL12170

MODEL SUMMARY

The DCG12-17 is part of our DCG range of deep cycle gel batteries which have been designed specifically to offer superior performance in cyclic applications. The 12V 17.00Ah gel battery offers a high cycle life in a large range of cyclic applications including mobility, golf, solar and wind.

Power Sonic’s state-of-the-art manufacturing and process control combined with rigorous quality assurance procedures guarantee consistent and reliable performance.
