ES-10002000S

ES BESS Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 1MW 2064kWh containerized battery energy storage system
  • AC rated voltage 690VAC
  • All-in-one design complete with battery, PCS, HVAC, fire suppression, and smart controller
  • UL9540 certified and tested to UL9540a for thermal runaway
  • Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 3-level battery management system
  • 100% prefabricated modular design enables quick and easy onsite installation
  • Bi-directional technology with multiple modes for flexible charging and discharging
  • 2 hour energy storage system with 1075.2 - 1363.2 DC voltage range

Model Number:

ES-10002000S

Rated Power:

1MW

Input / Output Voltage:

690 VAC

Input / Output Frequency:

50 / 60Hz

Rated DC Capacity:

2064kWh

DC Voltage Range:

1075.2 - 1363.2 VDC

Battery Chemistry:

Lithium Iron Phosphate (LiFePO4)

Communication:

RS485, Ethernet, GPRS

All-In-One :

Battery, BMS, HVAC, PCS, Fire Suppression, Smart Controller,

Example Applications:

Solar + Storage, Micro-Grid, Peak-Shaving, Demand Side Response, Backup Power, EV Charging

Dimensions

Length:

238.5'' / 6058mm

Width:

95'' / 2438mm

Height:

102.0'' / 2591mm

  • 1MW 2064kWh containerized battery energy storage system
  • AC rated voltage 690VAC
  • All-in-one design complete with battery, PCS, HVAC, fire suppression, and smart controller
  • UL9540 certified and tested to UL9540a for thermal runaway
  • Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 3-level battery management system
  • 100% prefabricated modular design enables quick and easy onsite installation
  • Bi-directional technology with multiple modes for flexible charging and discharging
  • 2 hour energy storage system with 1075.2 - 1363.2 DC voltage range

Model Number:

ES-10002000S

Rated Power:

1MW

Input / Output Voltage:

690 VAC

Input / Output Frequency:

50 / 60Hz

Rated DC Capacity:

2064kWh

DC Voltage Range:

1075.2 - 1363.2 VDC

Battery Chemistry:

Lithium Iron Phosphate (LiFePO4)

Communication:

RS485, Ethernet, GPRS

All-In-One :

Battery, BMS, HVAC, PCS, Fire Suppression, Smart Controller,

Example Applications:

Solar + Storage, Micro-Grid, Peak-Shaving, Demand Side Response, Backup Power, EV Charging

Dimensions

Length:

238.5'' / 6058mm

Width:

95'' / 2438mm

Height:

102.0'' / 2591mm

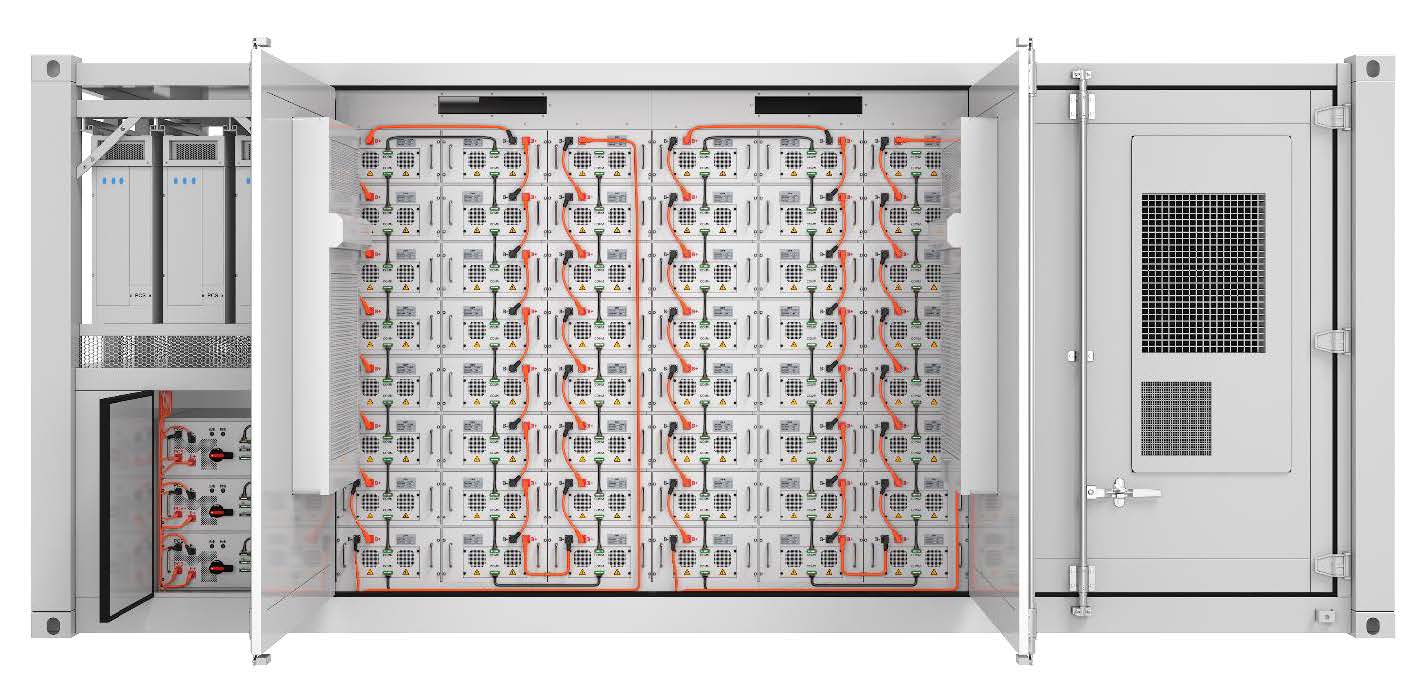

Product Image

The ES-10002000S is fully ANSI/CAN/UL 9540:2020 certified and compliant with CEPA and NFPA safety codes.

MODEL SUMMARY

EVESCO’s ES-10002000S is an all-in-one and modular battery energy storage system that creates tremendous value and flexibility for commercial and industrial customers. The UL9540 certified system comes complete with a 1MW power conversion system, 2-hour lithium battery, 3-level battery management system, HVAC, fire suppression system, and intelligent controller. The ES-10002000S has a high energy density with 2064kWh of capacity in a modular 20' container enabling maximum power in a compact footprint. Developed with safety and performance in mind, the environmental control system set up inside the container ensures optimal conditions to maximize system life. At the same time, the intelligent BMS and optional gas detection and release system improves the safety of the energy storage system during its lifespan.

The 1MW 2064kWh energy storage system can be used for various applications such as peak shaving, frequency regulation, integration with renewables, microgrids, and backup power. You can connect the modular systems in parallel to increase the total available energy.
