EVAC-19i-NA

EVAC-I (NA) Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 19.2 kW level 2 electric vehicle charger with 80A output
  • Ethernet, 4G and Wi-Fi network connections
  • 25-foot type 1 (SAE J1772) charging cable
  • Open Charge Point Protocol (OCPP) 1.6 support
  • User-friendly with RFID
  • NEMA 3R rated design ideal for outdoor installation
  • Designed for easy installation and maintenance
  • 50 / 60Hz, 208 / 240VAC split-phase supply input

Model Number:

EVAC-19i-NA

Output Power:

19.2kW

Output Current:

80A

Supply Input:

208 / 240VAC (+/- 10%) split phase / 50Hz / 60Hz

Charging Cable:

Type 1 (SAE J1772) - 25-foot cable

Network Connections:

Ethernet, 4G, Wi-Fi

Communication:

OCPP1.6

Mounting:

Wall-mounted or floor mounted with a pedestal

Dimensions

Width:

10.6'' / 269mm

Depth:

5.5'' / 140mm

Height:

14.1'' / 358mm

  • 19.2 kW level 2 electric vehicle charger with 80A output
  • Ethernet, 4G and Wi-Fi network connections
  • 25-foot type 1 (SAE J1772) charging cable
  • Open Charge Point Protocol (OCPP) 1.6 support
  • User-friendly with RFID
  • NEMA 3R rated design ideal for outdoor installation
  • Designed for easy installation and maintenance
  • 50 / 60Hz, 208 / 240VAC split-phase supply input

Model Number:

EVAC-19i-NA

Output Power:

19.2kW

Output Current:

80A

Supply Input:

208 / 240VAC (+/- 10%) split phase / 50Hz / 60Hz

Charging Cable:

Type 1 (SAE J1772) - 25-foot cable

Network Connections:

Ethernet, 4G, Wi-Fi

Communication:

OCPP1.6

Mounting:

Wall-mounted or floor mounted with a pedestal

Dimensions

Width:

10.6'' / 269mm

Depth:

5.5'' / 140mm

Height:

14.1'' / 358mm

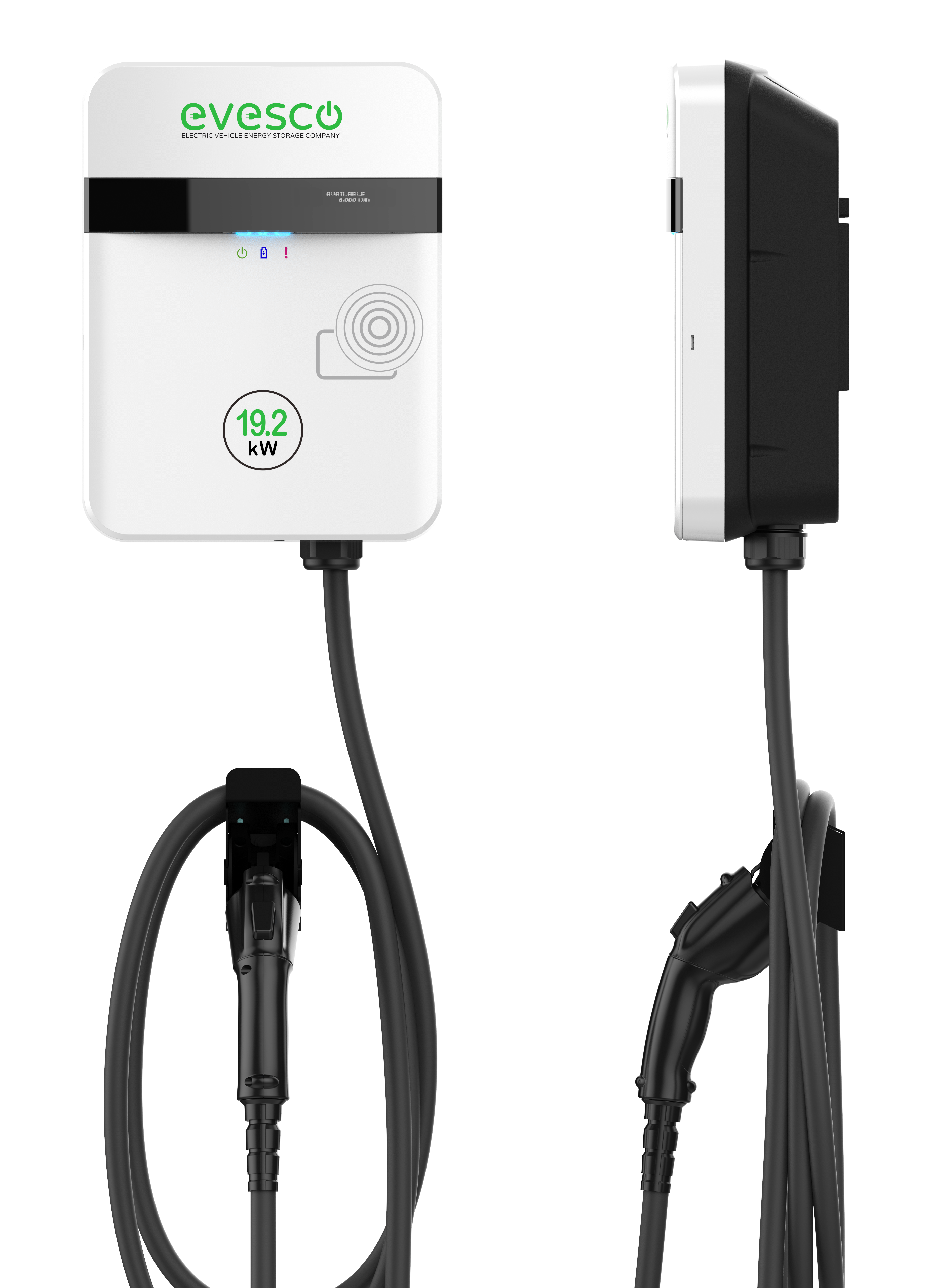

Product Image

The charger is UL-listed and meets safety criteria for use throughout North America. If you are looking for a level 2 charger outside of North America please check out our EVAC (EU) series

MODEL SUMMARY

The EVAC-19i (NA) from EVESCO is the largest and most powerful charging station in the EVAC-i series outputting an impressive 19.2kW 80A. The sleek and innovative level 2 charging station has the most wanted features and functions, including RFID, Ethernet, Wi-Fi, 4G, and OCPP capabilities. Input supply of 208 / 240VAC split-phase with indoor or outdoor installations with its NEMA 3R-rated design. The EVAC-19i (NA) utilizes a 25-foot type 1 (SAE J1772) charging cable that works with all battery electric vehicles and plug-in hybrids in North America.

EVESCO’s level 2 charging stations for North America can charge much faster than standard Level 1 chargers. The 80A version delivers around 120km (75 miles) range per hour. Easy and flexible installation with the option of wall-mounted or floor-mounted with a pedestal. Streamline your EV charging with intelligent, safe, and reliable EV charging with EVESCO.
