EVAC-22S IP55 (EU)

EVAC-S Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 22kW dual Level 2 charging station charger with 55-inch media screen
  • Share customized content applicable to your venue or generate advertising revenue
  • Dual Type 2 (Mennekes) charging cables
  • Start modes include plug-n-play and RFID card
  • Ethernet, 4G and Wi-Fi network connectivity
  • IP55 rated design ideal for outdoor installation
  • OCPP 1.6J compliant
  • 50Hz, 400VAC supply input (three-phase)

Model Number:

EVAC-22S IP55 (EU)

Output Power:

22kW

Supply Input:

400VAC (+/-10%) three-phase / 50Hz

Socket Type:

Dual Type 2 (Mennekes) charging cables

Network Connections:

LAN, 4G, Wi-Fi

Start Modes:

Plug-n-play, RFID card

Communication:

OCPP1.6

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Width:

38.5'' / 977mm

Depth:

9.84'' / 250mm

Height:

78.2'' / 2000mm

  • 22kW dual Level 2 charging station charger with 55-inch media screen
  • Share customized content applicable to your venue or generate advertising revenue
  • Dual Type 2 (Mennekes) charging cables
  • Start modes include plug-n-play and RFID card
  • Ethernet, 4G and Wi-Fi network connectivity
  • IP55 rated design ideal for outdoor installation
  • OCPP 1.6J compliant
  • 50Hz, 400VAC supply input (three-phase)

Model Number:

EVAC-22S IP55 (EU)

Output Power:

22kW

Supply Input:

400VAC (+/-10%) three-phase / 50Hz

Socket Type:

Dual Type 2 (Mennekes) charging cables

Network Connections:

LAN, 4G, Wi-Fi

Start Modes:

Plug-n-play, RFID card

Communication:

OCPP1.6

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Width:

38.5'' / 977mm

Depth:

9.84'' / 250mm

Height:

78.2'' / 2000mm

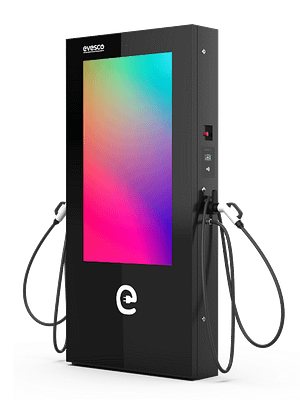

Product Image

Looking for a faster charge?
EVESCO also provide DC fast charging stations with media screens

MODEL SUMMARY

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S IP55 (EU) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 2 (Mennekes) 22 kW charging cables you can charge two electric vehicles at the same time.

The Level 2 dual charger provides AC power to the electric vehicles ‘onboard charger’ which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-22S IP55 (EU) can deliver 22kW of output power per charging cable at 40A and is designed to work with a three-phase 400VAC (+/-10%) 50Hz input supply. This specific EVAC-S model has an IP55 rated design and is ideal for installation in multiple outdoor locations.
