EVAC-7i-NA

EVAC-I (NA) Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 7.68 kW level 2 electric vehicle charger with 32A output
  • 4G and Wi-Fi network connections
  • 25-foot type 1 (SAE J1772) charging cable
  • Open Charge Point Protocol (OCPP) 1.6 support
  • User-friendly with RFID
  • NEMA 4 rated design ideal for outdoor installation
  • Designed for easy installation and maintenance
  • 60Hz, 208 / 240VAC single-phase supply input

Model Number:

EVAC-7i-NA

Output Power:

7.68kW

Output Current:

32A (single phase)

Supply Input:

208 / 240VAC (+/- 10%) single phase / 60Hz

Charging Cable:

Type 1 (SAE J1772) - 25-foot cable

Network Connections:

4G, Wi-Fi

Communication:

OCPP1.6

Mounting:

Wall-mounted or floor mounted with a pedestal

Dimensions

Width:

7.56'' / 192mm

Depth:

3.11'' / 79mm

Height:

11.14'' / 283mm

  • 7.68 kW level 2 electric vehicle charger with 32A output
  • 4G and Wi-Fi network connections
  • 25-foot type 1 (SAE J1772) charging cable
  • Open Charge Point Protocol (OCPP) 1.6 support
  • User-friendly with RFID
  • NEMA 4 rated design ideal for outdoor installation
  • Designed for easy installation and maintenance
  • 60Hz, 208 / 240VAC single-phase supply input

Model Number:

EVAC-7i-NA

Output Power:

7.68kW

Output Current:

32A (single phase)

Supply Input:

208 / 240VAC (+/- 10%) single phase / 60Hz

Charging Cable:

Type 1 (SAE J1772) - 25-foot cable

Network Connections:

4G, Wi-Fi

Communication:

OCPP1.6

Mounting:

Wall-mounted or floor mounted with a pedestal

Dimensions

Width:

7.56'' / 192mm

Depth:

3.11'' / 79mm

Height:

11.14'' / 283mm

Product Image

The charger is UL-listed and meets safety criteria for use throughout North America. If you are looking for a level 2 charger outside of North America please check out our EVAC (EU) series

MODEL SUMMARY

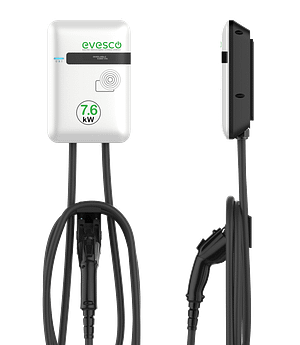

The EVAC-7i (NA) from EVESCO is an intelligent 7.68kW 32A EV charging station that provides AC power. The sleek and innovative level 2 charging station has the most wanted features and functions, including RFID, Wi-Fi, 4G, and OCPP capabilities. You can adjust the max current output to support multiple circuit ratings and install indoor or outdoor with its NEMA 4-rated design. The EVAC-7i (NA) utilizes a 25-foot type 1 (SAE J1772) charging cable that works with all battery electric vehicles and plug-in hybrids in North America.

EVESCO’s level 2 charging stations for North America can charge up to 8 x faster than standard Level 1 chargers delivering around 40km (25 miles) of range per hour. Easy and flexible installation with the option of wall-mounted or floor-mounted with a pedestal. Streamline your EV charging with intelligent, safe, and reliable EV charging with EVESCO.
