EVAC-9i-NA

EVAC-I (NA) Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 9.6 kW level 2 electric vehicle charger with 40A output
  • Ethernet, 4G and Wi-Fi network connections
  • 25-foot type 1 (SAE J1772) charging cable
  • Open Charge Point Protocol (OCPP) 1.6 support
  • User-friendly with RFID
  • NEMA 4 rated design ideal for outdoor installation
  • Designed for easy installation and maintenance
  • 60Hz, 208 / 240VAC single-phase supply input

Model Number:

EVAC-9i-NA

Output Power:

9.6kW

Output Current:

40A (single phase)

Supply Input:

208 / 240VAC (+/- 10%) single phase / 60Hz

Charging Cable:

Type 1 (SAE J1772) - 25-foot cable

Network Connections:

Ethernet, 4G, Wi-Fi

Communication:

OCPP1.6

Mounting:

Wall-mounted or floor mounted with a pedestal

Dimensions

Width:

7.56'' / 192mm

Depth:

3.11'' / 79mm

Height:

11.14'' / 283mm

  • 9.6 kW level 2 electric vehicle charger with 40A output
  • Ethernet, 4G and Wi-Fi network connections
  • 25-foot type 1 (SAE J1772) charging cable
  • Open Charge Point Protocol (OCPP) 1.6 support
  • User-friendly with RFID
  • NEMA 4 rated design ideal for outdoor installation
  • Designed for easy installation and maintenance
  • 60Hz, 208 / 240VAC single-phase supply input

Model Number:

EVAC-9i-NA

Output Power:

9.6kW

Output Current:

40A (single phase)

Supply Input:

208 / 240VAC (+/- 10%) single phase / 60Hz

Charging Cable:

Type 1 (SAE J1772) - 25-foot cable

Network Connections:

Ethernet, 4G, Wi-Fi

Communication:

OCPP1.6

Mounting:

Wall-mounted or floor mounted with a pedestal

Dimensions

Width:

7.56'' / 192mm

Depth:

3.11'' / 79mm

Height:

11.14'' / 283mm

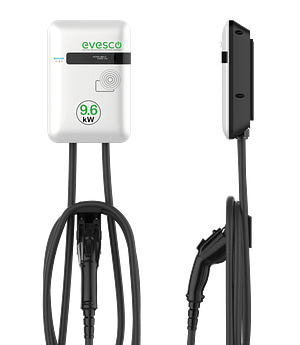

Product Image

The charger is UL-listed and meets safety criteria for use throughout North America. If you are looking for a level 2 charger outside of North America please check out our EVAC (EU) series

MODEL SUMMARY

The EVAC-9i (NA) from EVESCO is an intelligent 9.6kW 40A EV charging station that provides AC power. The sleek and innovative level 2 charging station has the most wanted features and functions, including RFID, Ethernet, Wi-Fi, 4G, and OCPP capabilities. Input supply of 208 / 240VAC single-phase with indoor or outdoor installations with its NEMA 4-rated design. The EVAC-9i (NA) utilizes a 25-foot type 1 (SAE J1772) charging cable that works with all battery electric vehicles and plug-in hybrids in North America.

EVESCO’s level 2 charging stations for North America can charge much faster than standard Level 1 chargers. The 40A version delivers around 60km (37 miles) range per hour. Easy and flexible installation with the option of wall-mounted or floor-mounted with a pedestal. Streamline your EV charging with intelligent, safe, and reliable EV charging with EVESCO.
