EVAC-9S IP66 (NA)

EVAC-S Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 9.6kW dual Level 2 charging station charger with 55-inch media screen
  • Share customized content applicable to your venue or generate advertising revenue
  • Dual Type 1 (SAE J1772) charging cables
  • Start modes include plug-n-play and RFID card
  • Ethernet, 4G and Wi-Fi network connectivity
  • IP66 rated design with zero media screen maintenance
  • OCPP 1.6J compliant
  • 60Hz, 208 / 240VAC supply input (single-phase)

Model Number:

EVAC-9S IP66 (NA)

Output Power:

9.6kW

Supply Input:

208 / 240VAC / 60Hz

Socket Type:

Dual Type 1 (SAE J1772) charging cables

Network Connections:

LAN, 4G, Wi-Fi

Start Modes:

Plug-n-play, RFID card

Communication:

OCPP1.6

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Width:

35.24'' / 895mm

Depth:

8.66'' / 220mm

Height:

78.74'' / 2000mm

  • 9.6kW dual Level 2 charging station charger with 55-inch media screen
  • Share customized content applicable to your venue or generate advertising revenue
  • Dual Type 1 (SAE J1772) charging cables
  • Start modes include plug-n-play and RFID card
  • Ethernet, 4G and Wi-Fi network connectivity
  • IP66 rated design with zero media screen maintenance
  • OCPP 1.6J compliant
  • 60Hz, 208 / 240VAC supply input (single-phase)

Model Number:

EVAC-9S IP66 (NA)

Output Power:

9.6kW

Supply Input:

208 / 240VAC / 60Hz

Socket Type:

Dual Type 1 (SAE J1772) charging cables

Network Connections:

LAN, 4G, Wi-Fi

Start Modes:

Plug-n-play, RFID card

Communication:

OCPP1.6

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Width:

35.24'' / 895mm

Depth:

8.66'' / 220mm

Height:

78.74'' / 2000mm

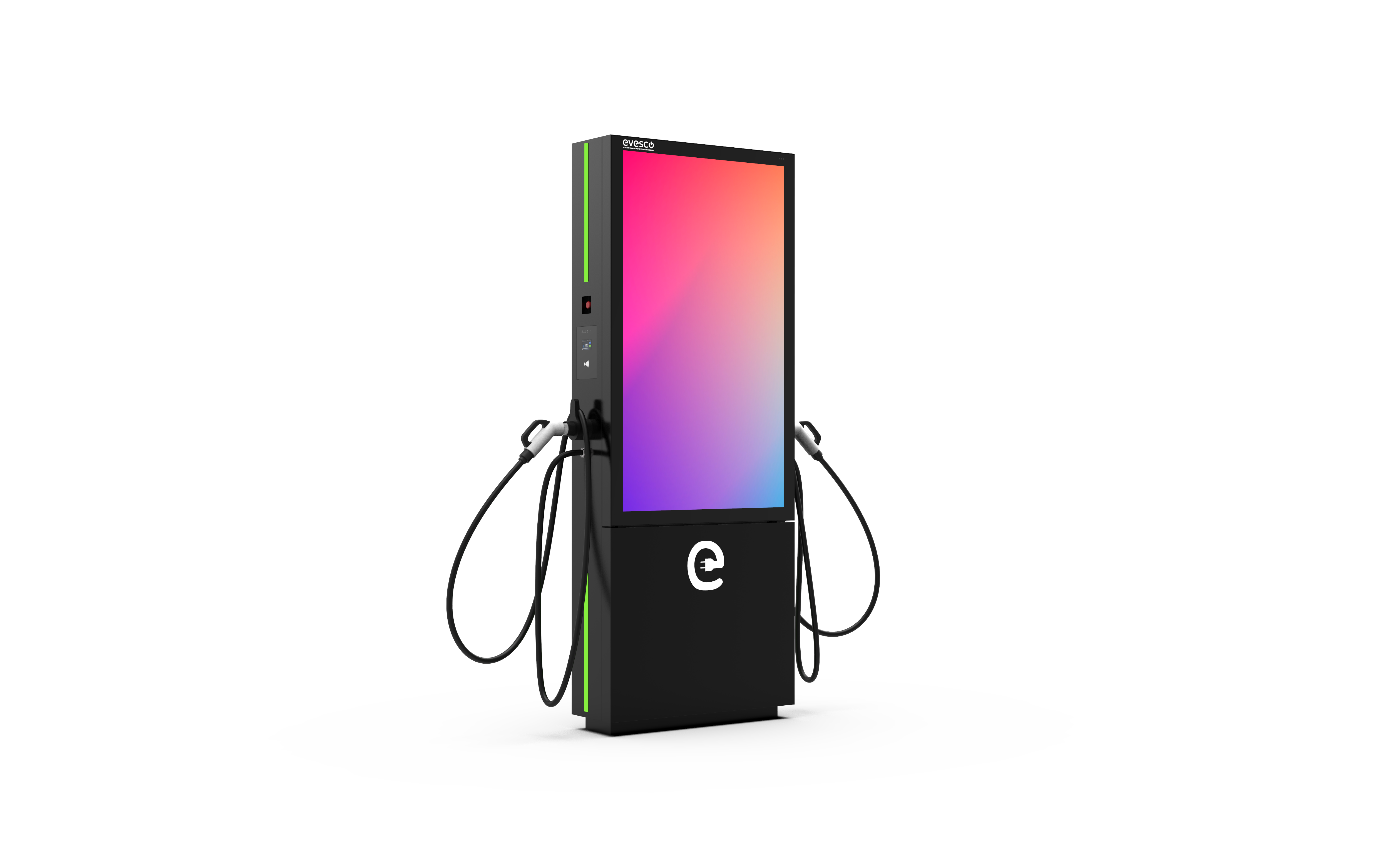

Product Image

Looking for a faster charge?
EVESCO also provide DC fast charging stations with media screens

MODEL SUMMARY

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S IP66 (NA) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 1 (SAE J1772) 9.6 kW charging cables you can charge two electric vehicles at the same time.

The Level 2 dual charger provides AC power to the electric vehicles ‘onboard charger,’ which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-9S IP66 (NA) can deliver 9.6kW of output power per charging cable at 40A and is designed to work with a single-phase 208 / 240VAC 60Hz input supply. This specific EVAC-S model has an IP66-rated design meaning the media screen is completely maintenance-free with no fan, no vent, and no filter; this makes it ideal for outdoor installations.
