  • 60kW mobile DC fast charger
  • Designed for mobile electric vehicle charging
  • 150VDC - 1000VDC output voltage
  • Interchangeable CHAdeMO, CCS 1, CCS 2 and GB/T cables for flexible multi-protocol charging
  • High-performance charging module with a wide charging range for charging all DC-compatible EVs
  • Truly portable with robust castors for quick and easy movement
  • Instant DC fast charging with immediate deployment
  • Wide input and frequency range suitable for global markets

Model Number:

EVMO-60S

Output Power:

60kW

Output Voltage:

150VDC - 1000VDC

Supply Input:

305 - 520VAC three-phase + N + PE / 40 - 65 Hz

Charger Type:

Mobile DC fast charger

Cable Type:

Interchangeable CCS1, CCS2, CHAdeMO or GB/T

Cable Length:

5 m (16.4 ft) or 14 m (45.9 ft)

Communication :

OCCP 1.6

Dimensions

Length:

27.5'' / 698mm

Width:

18.9'' / 479mm

Height:

29.7'' / 756mm

  • 60kW mobile DC fast charger
  • Designed for mobile electric vehicle charging
  • 150VDC - 1000VDC output voltage
  • Interchangeable CHAdeMO, CCS 1, CCS 2 and GB/T cables for flexible multi-protocol charging
  • High-performance charging module with a wide charging range for charging all DC-compatible EVs
  • Truly portable with robust castors for quick and easy movement
  • Instant DC fast charging with immediate deployment
  • Wide input and frequency range suitable for global markets

Model Number:

EVMO-60S

Output Power:

60kW

Output Voltage:

150VDC - 1000VDC

Supply Input:

305 - 520VAC three-phase + N + PE / 40 - 65 Hz

Charger Type:

Mobile DC fast charger

Cable Type:

Interchangeable CCS1, CCS2, CHAdeMO or GB/T

Cable Length:

5 m (16.4 ft) or 14 m (45.9 ft)

Communication :

OCCP 1.6

Dimensions

Length:

27.5'' / 698mm

Width:

18.9'' / 479mm

Height:

29.7'' / 756mm

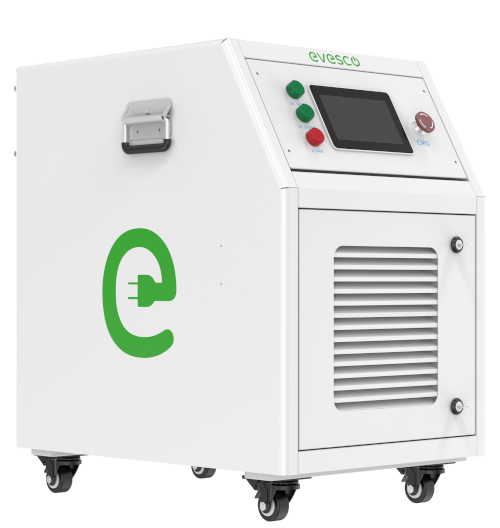

Product Image

Looking for a mobile EV charging solution with an integrated battery pack? Take a look at our EVES series of off-grid, mobile EV chargers.

MODEL SUMMARY

The EVMO-S Series of mobile DC fast chargers have been designed as a flexible alternative to stationary EV charging stations. The EVMO-60S is a 60kW mobile DC fast charger utilizing the latest DC fast charging technology. Connected to any three-phase outlet (305 - 520 VAC, 40 - 65 Hz), it will provide instant mobile fast charging for electric vehicles. Interchangeable charging cables enable flexible multi-protocol charging with CHAdeMO, CCS 1, CCS 2 and GB/T options available. Charge the 400V and 800V electric vehicles with an output voltage of 150VDC - 1000VDC.

The 60kW portable EV charging station converts AC power into DC for faster power delivery directly to the electric vehicle battery. Designed for fast-charging speeds, the EVMO-60S can deliver over 100 miles of range in less than 30 minutes of charging. The EVMO-S Series are truly portable EV fast chargers with low weight and compact design that can be deployed quickly to meet growing EV charging demand. The ideal mobile charging solution for various applications, including fleet operators, auto dealers, and event planners.
