PDC-12350

PDC Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 35Ah Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-12350

Nominal voltage:

12V

Capacity @20HR (AH):

35.00 Ah

Capacity @10HR (AH):

33.00 Ah

Weight:

11.3kg / 25.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

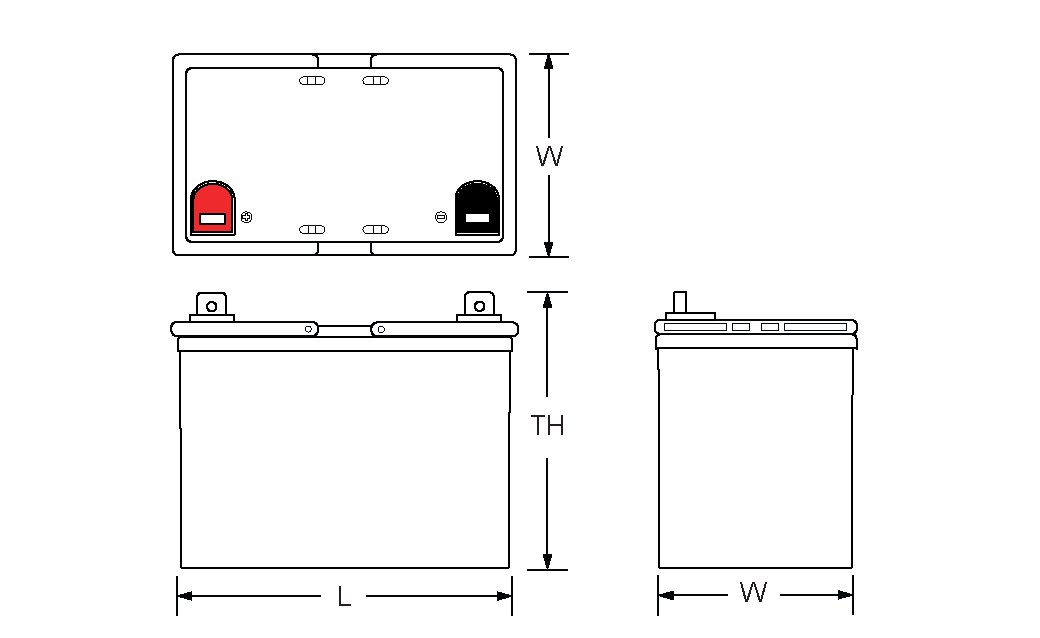

Dimensions

Length:

7.68'' / 195mm

Width:

5.12'' / 130mm

Height:

6.46'' / 164mm

Recommended Charger:

PSC-124000ACX

NB3
Terminal Info
  • 12V 35Ah Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-12350

Nominal voltage:

12V

Capacity @20HR (AH):

35.00 Ah

Capacity @10HR (AH):

33.00 Ah

Weight:

11.3kg / 25.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

7.68'' / 195mm

Width:

5.12'' / 130mm

Height:

6.46'' / 164mm

Recommended Charger:

PSC-124000ACX

NB3
Terminal Info

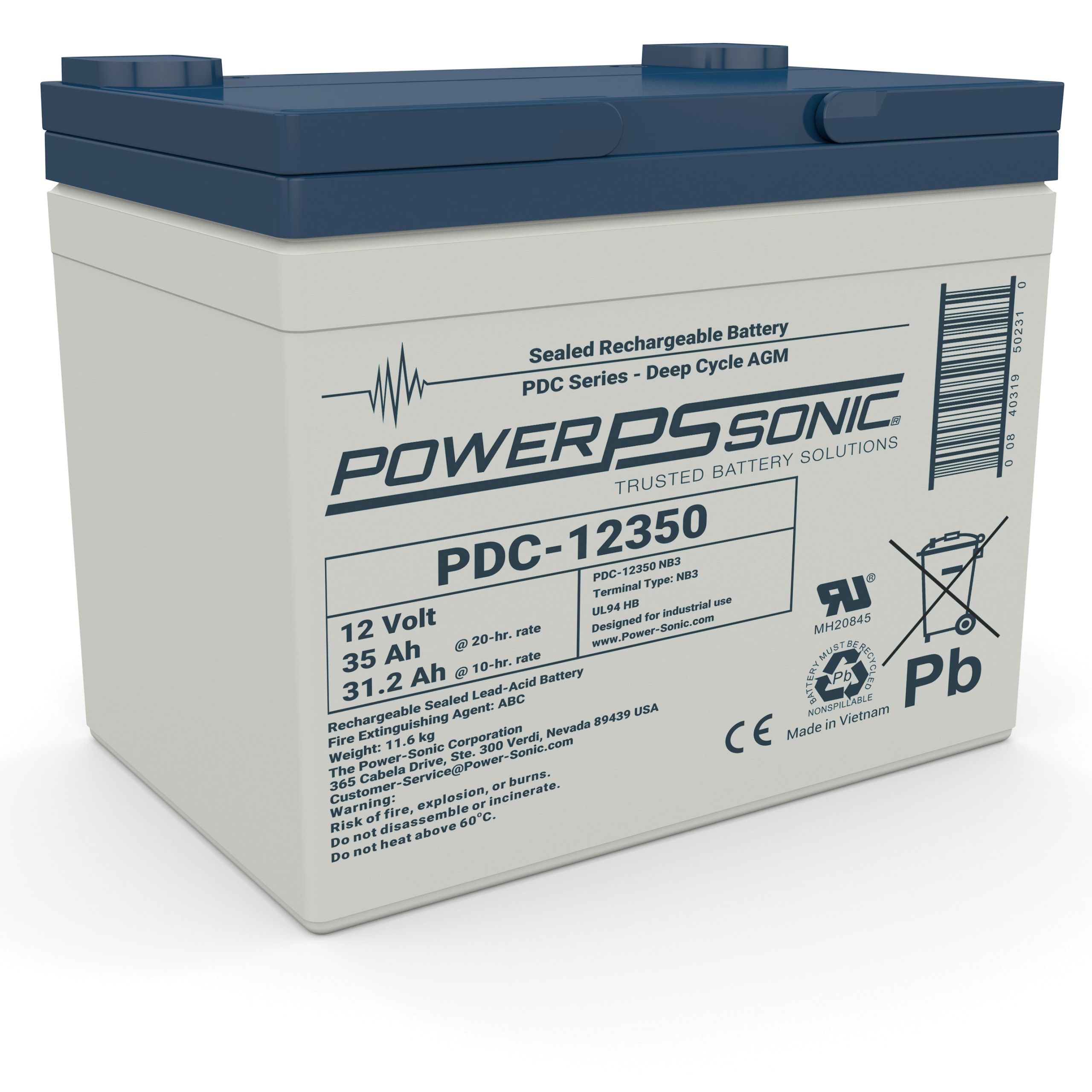

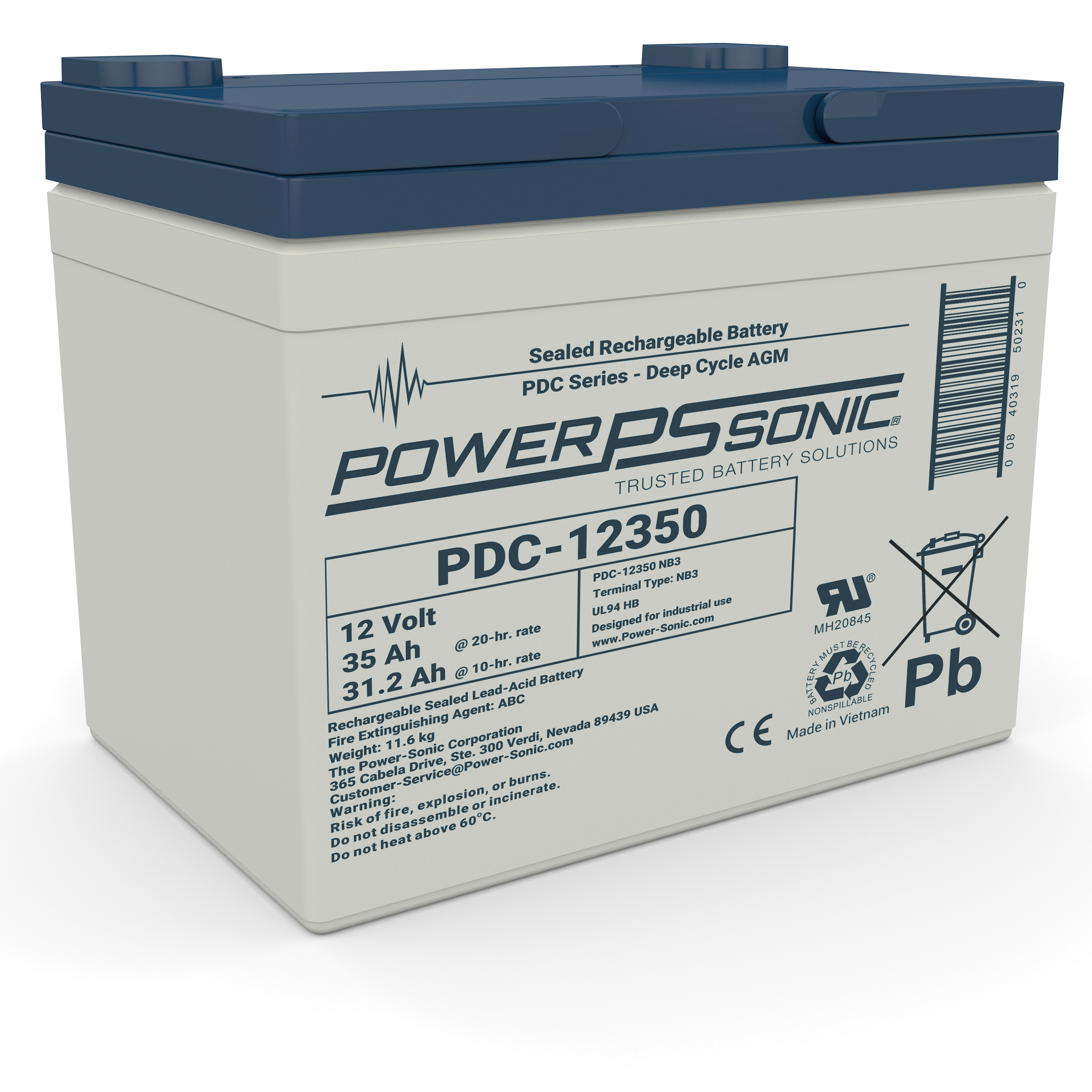

Product Image

MODEL SUMMARY

The PDC-12350 is part of our PDC range of deep cycle sealed lead acid batteries (often referred to as VRLA) which have been designed specifically to offer enhanced performance in cyclic applications. The 12V 35.00Ah deep cycle battery offers a high cycle life in a wide range of cyclic applications including mobility, medical, golf and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
