PDC-12600

PDC Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 60Ah Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-12600

Nominal voltage:

12V

Capacity @20HR (AH):

60.00 Ah

Capacity @10HR (AH):

55.00 Ah

Weight:

17.7kg / 39.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

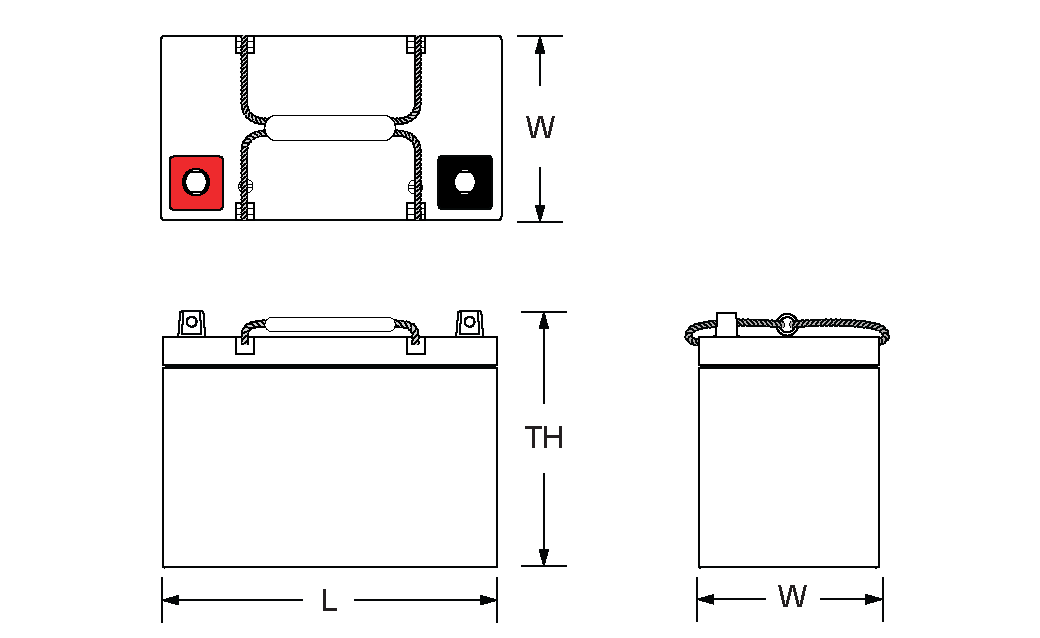

Dimensions

Length:

9.06'' / 230mm

Width:

5.43'' / 138mm

Height:

8.66'' / 220mm

Recommended Charger:

U
Terminal Info
  • 12V 60Ah Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-12600

Nominal voltage:

12V

Capacity @20HR (AH):

60.00 Ah

Capacity @10HR (AH):

55.00 Ah

Weight:

17.7kg / 39.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

9.06'' / 230mm

Width:

5.43'' / 138mm

Height:

8.66'' / 220mm

Recommended Charger:

U
Terminal Info

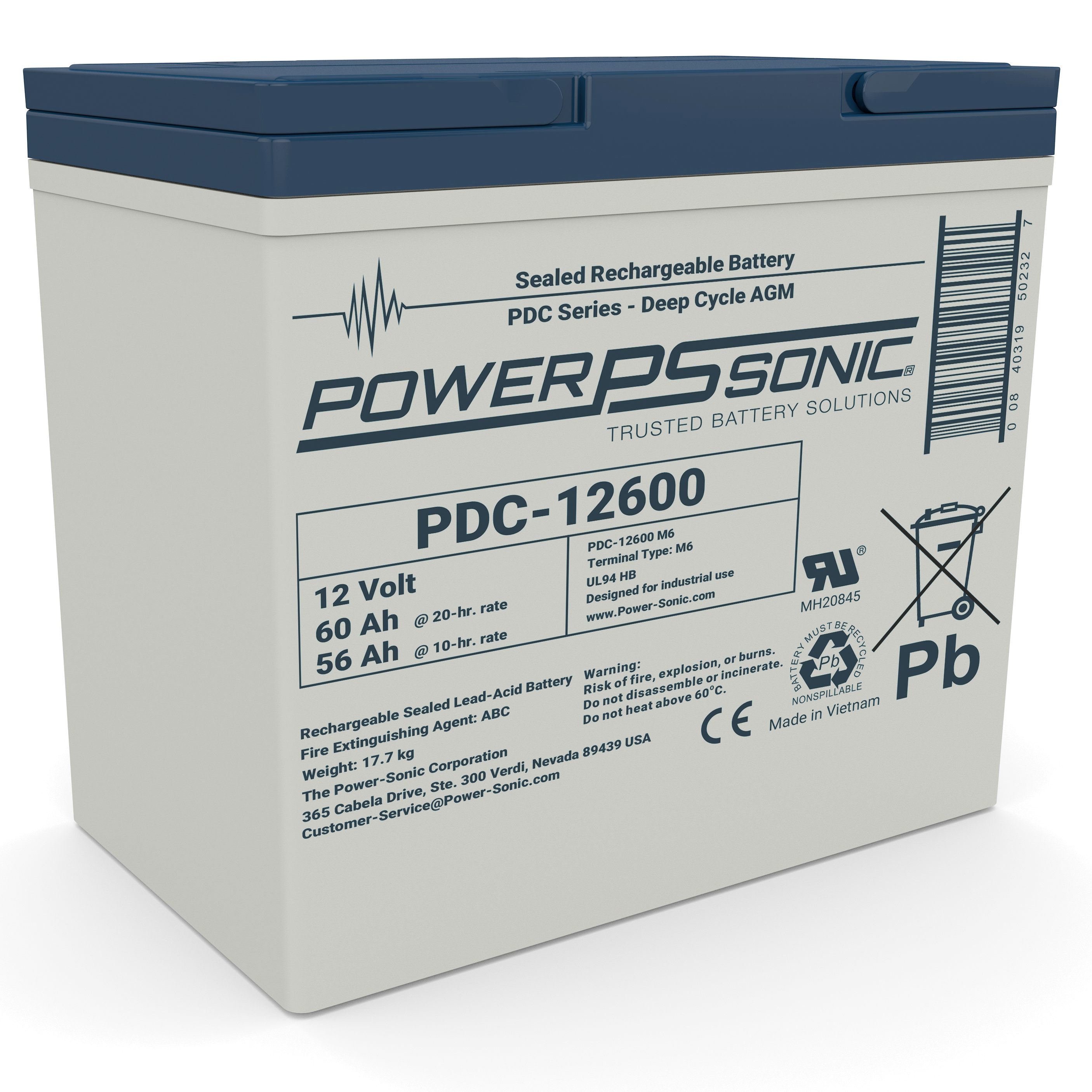

Product Image

MODEL SUMMARY

The PDC-12600 is part of our PDC range of deep cycle sealed lead acid batteries (often referred to as VRLA) which have been designed specifically to offer enhanced performance in cyclic applications. The 12V 60.00Ah deep cycle battery offers a high cycle life in a wide range of cyclic applications including mobility, medical, golf and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

Related Downloads

PDF

PDC Summary Specification Sheet_US

Download
PDF

Product Warranty - Lead Acid

Download
PDF

How To Charge Lead Acid Batteries

Download
View all downloads at the Resource Center

RELATED PRODUCTS

Private: DCG12-60

Private: DCG12-60

The DCG12-60 is part of our DCG range of deep cycle gel batteries which have been designed specifically to offer superior performance in cyclic...

View Private: DCG12-60
PHR-12200

PHR-12200

The PHR-12200 is part of our PHR high-rate range of sealed lead acid batteries (often referred to as high-rate VRLA) which have been specifically...

View PHR-12200
PG-12V55 FR

PG-12V55 FR

The PG-12V55 FR is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for...

View PG-12V55 FR
PSL-BTP-12750

PSL-BTP-12750

The PSL-BTP-12750 is part of our Bluetooth lithium range of LiFePO4 batteries which combines proven lithium iron phosphate technology with an...

View PSL-BTP-12750

READY TO PURCHASE?

FIND A DISTRIBUTOR

Power Sonic have a network of battery distributors throughout North America and around the world

Find my nearest distributor

Speak to an expert

If you need help selecting the right charger for your particular application feel free to contact us, we have a highly trained and qualified team of experts that will be more than happy to help you.

link

The Power Sonic Brand Promise

Quality Icon

Quality

Manufactured using the latest technology and stringent quality control, our battery products are designed to exceed in performance and reliability.

Experience Icon

Experience

Our focused approach to exceptional end to end customer experience sets us apart from the competition. From enquiry to delivery and everything in-between we regularly exceed our customers’ expectations.

Service Icon

Service

Delivery on time, every time to customer specifications. We pride ourselves on offering tailored service solutions to meet our customers' exact specifications.

X

Choose your distributor

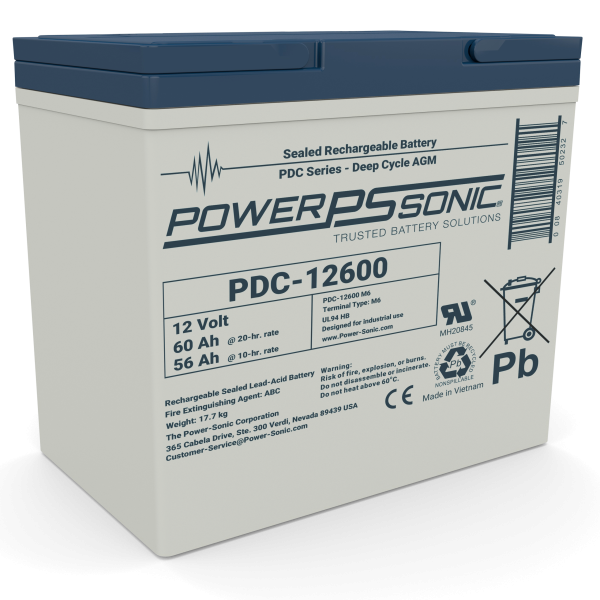

Product Image
