PG-12V110

PG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 113.2Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V110

Nominal voltage:

12V

Capacity @20HR (AH):

113.20 Ah

Capacity @10HR (AH):

111.00 Ah

Weight:

31.2kg / 68.8lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

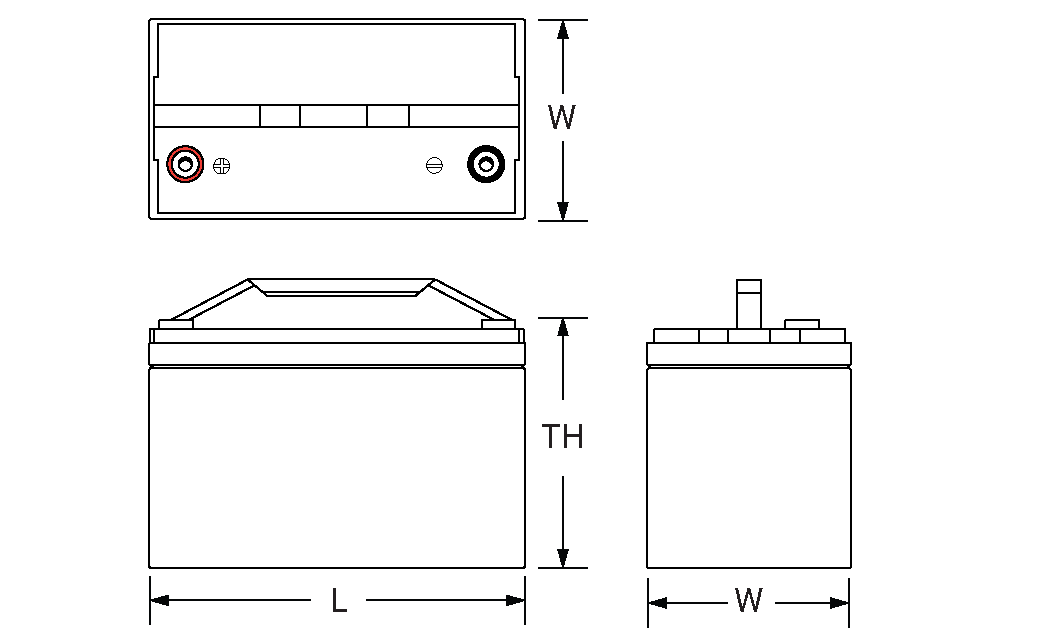

Dimensions

Length:

12.99'' / 330mm

Width:

6.81'' / 173mm

Height:

8.35'' / 212mm

Recommended Charger:

T11
Terminal Info
  • 12V 113.2Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V110

Nominal voltage:

12V

Capacity @20HR (AH):

113.20 Ah

Capacity @10HR (AH):

111.00 Ah

Weight:

31.2kg / 68.8lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

12.99'' / 330mm

Width:

6.81'' / 173mm

Height:

8.35'' / 212mm

Recommended Charger:

T11
Terminal Info

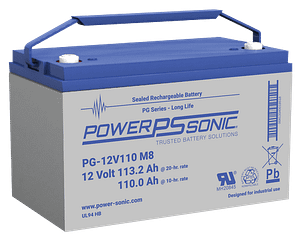

Product Image

MODEL SUMMARY

The PG-12V110 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 113.2Ah battery offers reliable performance in a large range of applications including UPS, telecommunications and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

Related Downloads

PDF

PG-Summary-Specification-Sheet

Download
PDF

Product Warranty - Lead Acid

Download
PDF

How To Charge Lead Acid Batteries

Download
View all downloads at the Resource Center

RELATED PRODUCTS

PHR-12400

PHR-12400

The PHR-12400 is part of our PHR high-rate range of sealed lead acid batteries (often referred to as high-rate VRLA) which have been specifically...

View PHR-12400
PDC-121100

PDC-121100

The PDC-121100 is part of our PDC range of deep cycle sealed lead acid batteries (often referred to as VRLA) which have been designed specifically to...

View PDC-121100
PS-121100

PS-121100

The PS-121100 is part of our PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general...

View PS-121100

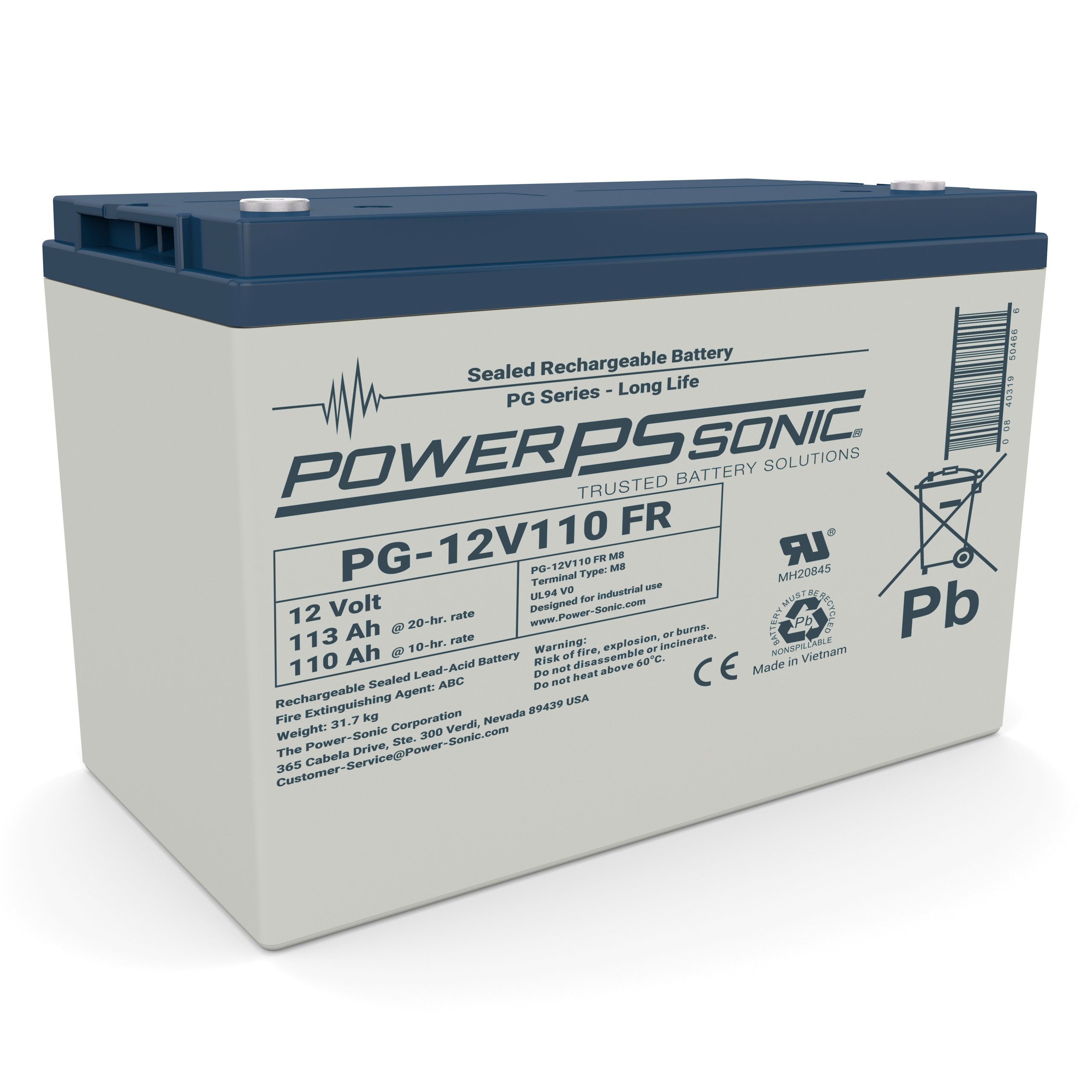

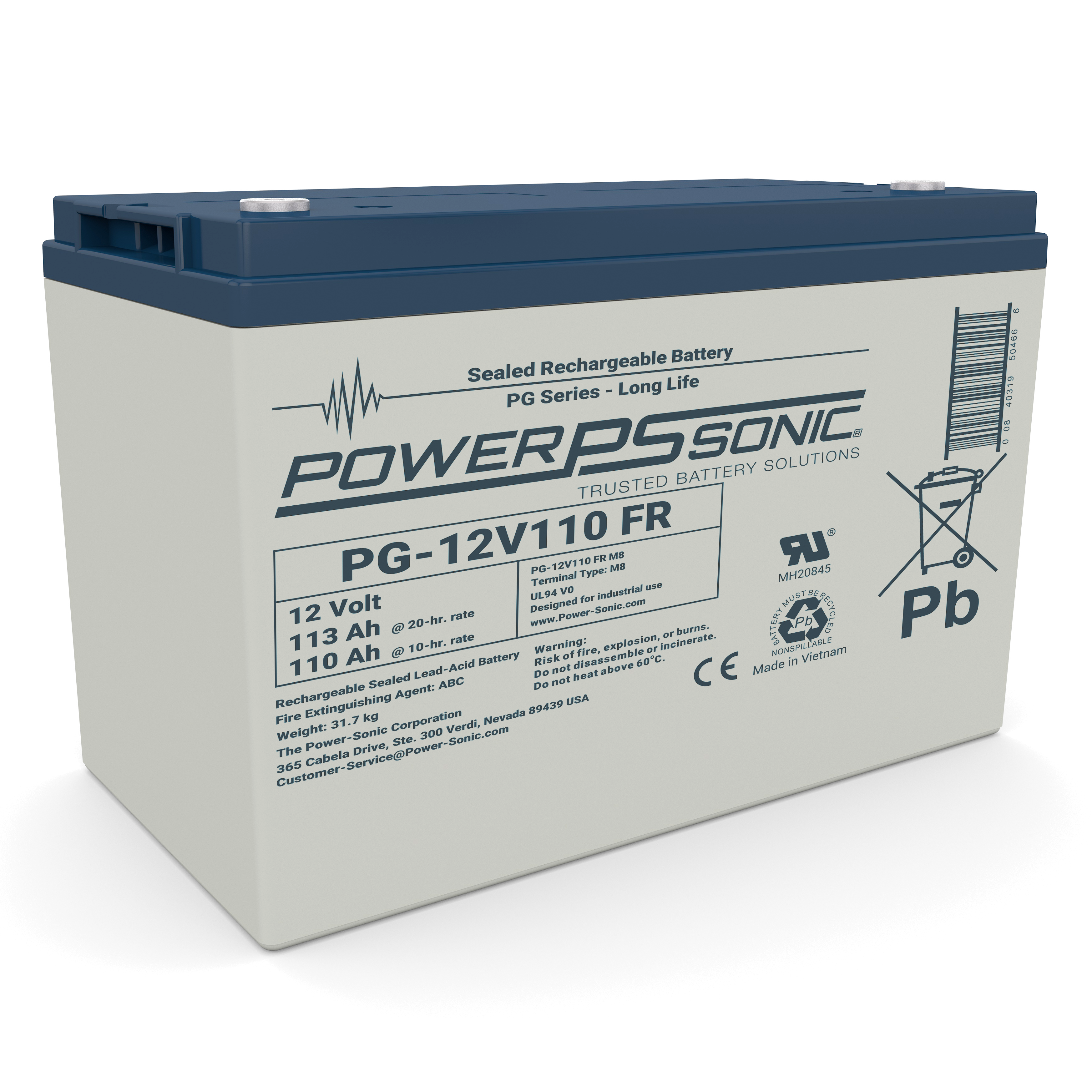

PG-12V110 FR
