PG-12V140

PG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 147Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V140

Nominal voltage:

12V

Capacity @20HR (AH):

147.00 Ah

Capacity @10HR (AH):

140.00 Ah

Weight:

45.5kg / 100.3lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

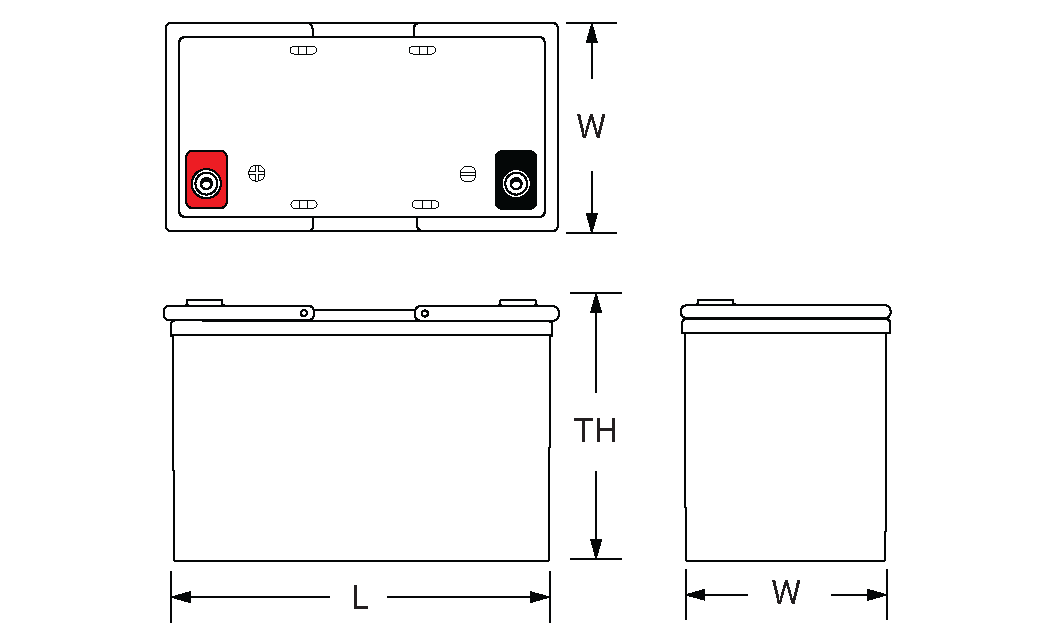

Dimensions

Length:

13.6'' / 345mm

Width:

6.77'' / 172mm

Height:

10.79'' / 274mm

Recommended Charger:

T11
Terminal Info
  • 12V 147Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V140

Nominal voltage:

12V

Capacity @20HR (AH):

147.00 Ah

Capacity @10HR (AH):

140.00 Ah

Weight:

45.5kg / 100.3lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

13.6'' / 345mm

Width:

6.77'' / 172mm

Height:

10.79'' / 274mm

Recommended Charger:

T11
Terminal Info
Product Image

MODEL SUMMARY

The PG-12V140 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 147.00Ah battery offers reliable performance in a large range of applications including UPS, telecommunications and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

Related Downloads

PDF

PG-Summary-Specification-Sheet

Download
PDF

Product Warranty - Lead Acid

Download
PDF

How To Charge Lead Acid Batteries

Download
View all downloads at the Resource Center

RELATED PRODUCTS

PHR-12500

PHR-12500

The PHR-12500 is part of our PHR high-rate range of sealed lead acid batteries (often referred to as high-rate VRLA) which have been specifically...

View PHR-12500

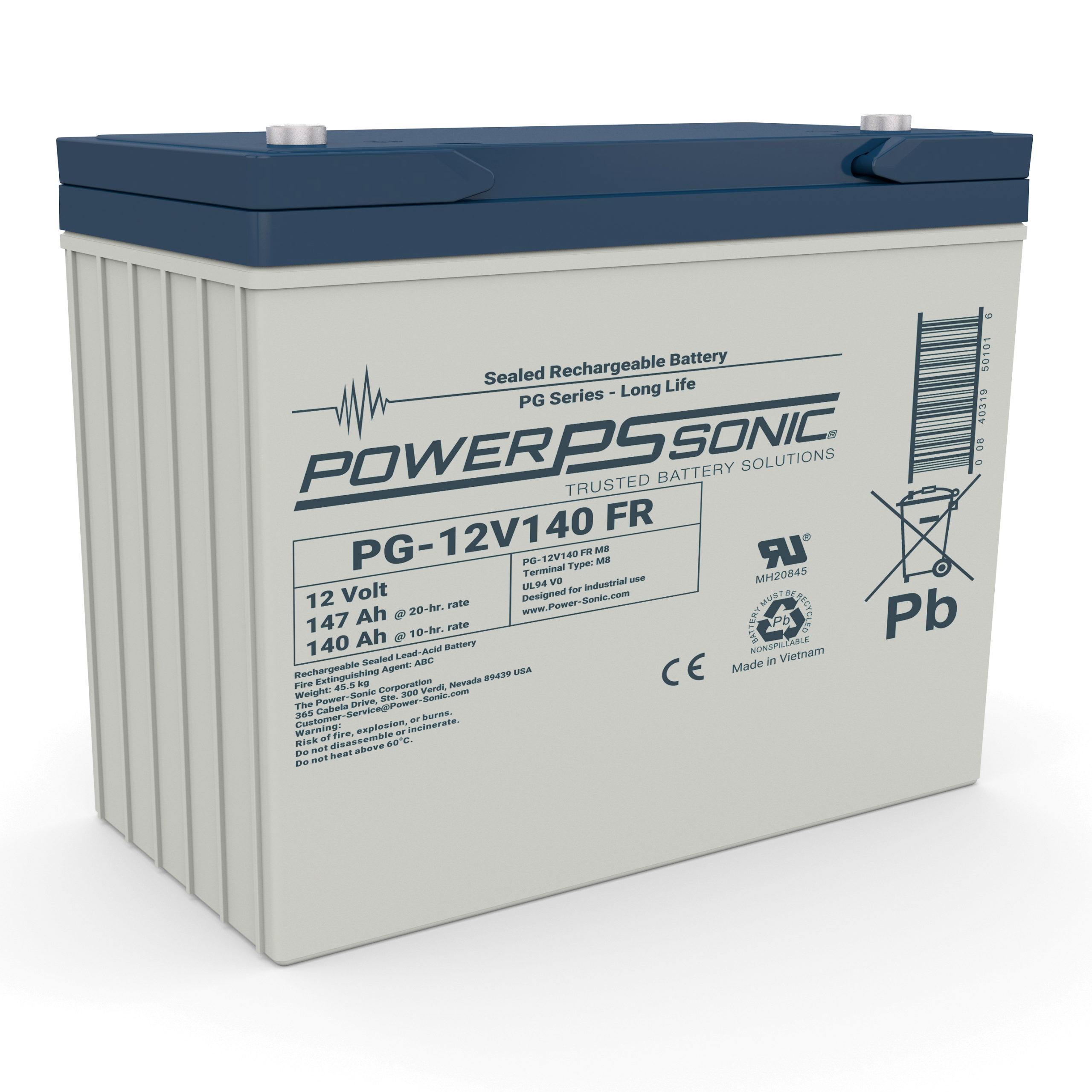

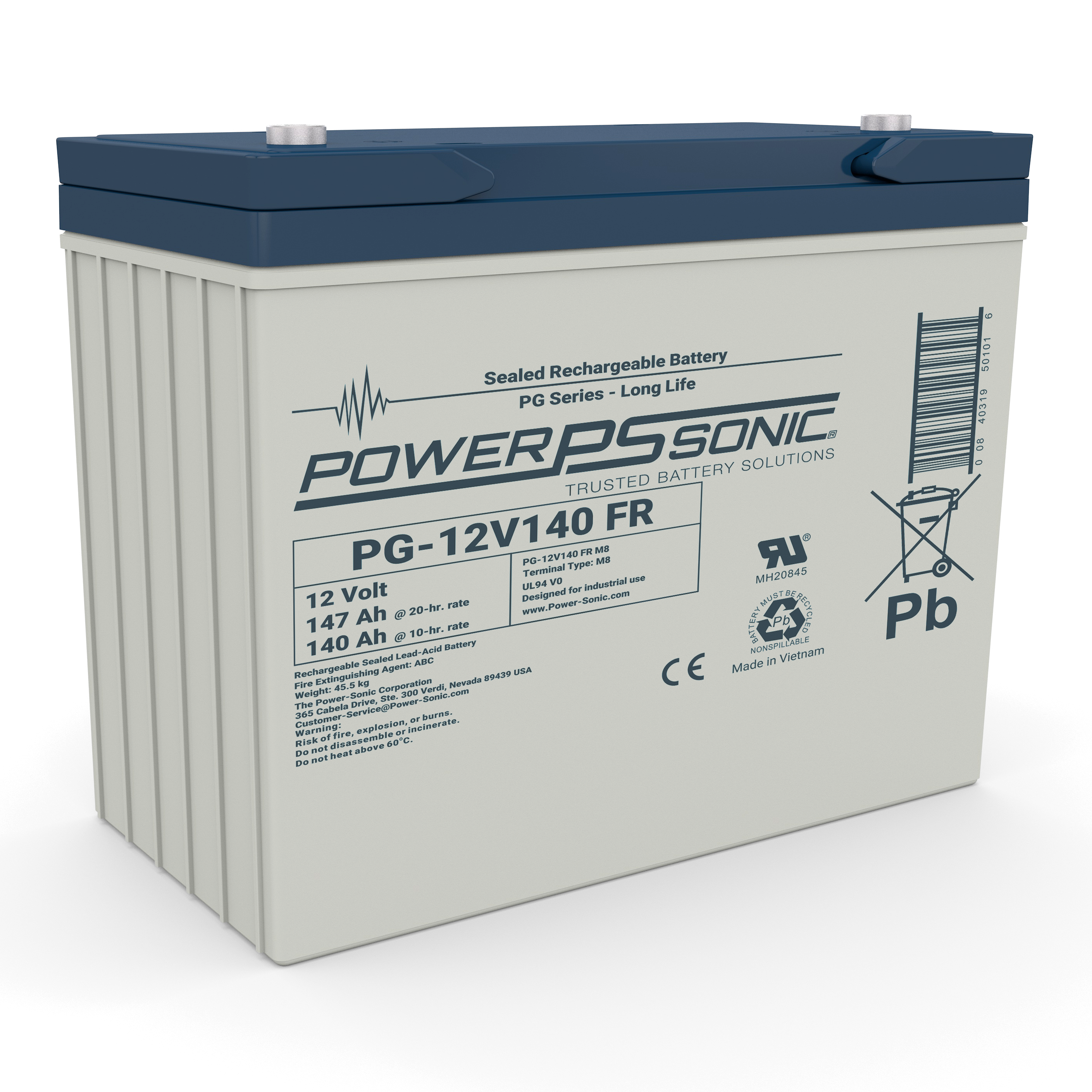

PG-12V140 FR
