PG-12V9

PG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 9.0Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 5 - 6 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V9

Nominal voltage:

12V

Capacity @20HR (AH):

9.0 Ah

Capacity @10HR (AH):

8.5 Ah

Weight:

2.52kg / 5.56lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

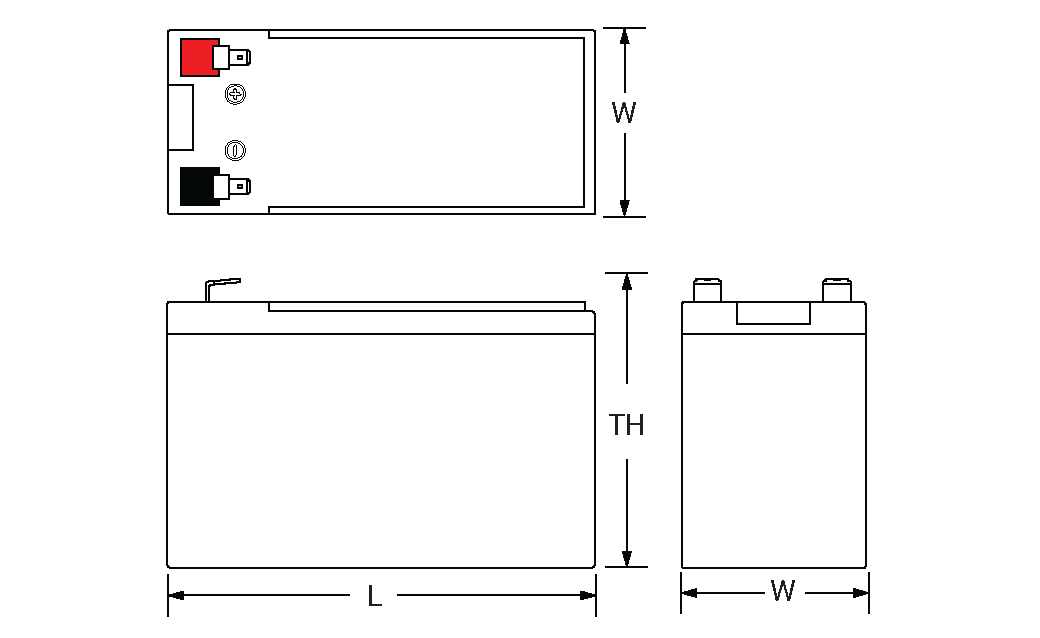

Dimensions

Length:

5.95'' / 151mm

Width:

2.56'' / 65mm

Height:

3.68'' / 93.5mm

F2
Terminal Info
  • 12V 9.0Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 5 - 6 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V9

Nominal voltage:

12V

Capacity @20HR (AH):

9.0 Ah

Capacity @10HR (AH):

8.5 Ah

Weight:

2.52kg / 5.56lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

5.95'' / 151mm

Width:

2.56'' / 65mm

Height:

3.68'' / 93.5mm

F2
Terminal Info

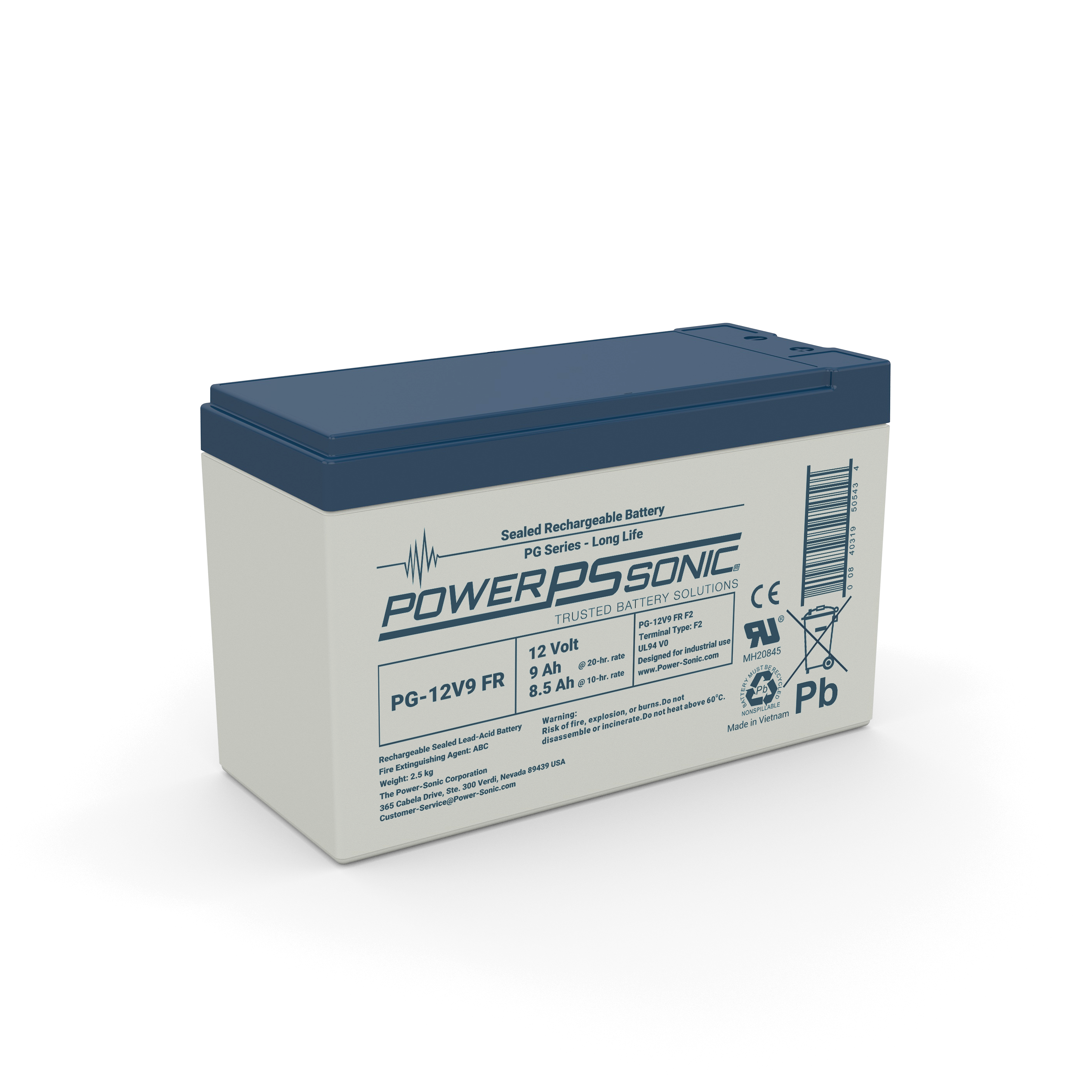

Product Image

MODEL SUMMARY

The PG-12V9 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 9.0Ah battery offers reliable performance in a large range of applications including UPS, telecommunications and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
