PG-2V100

PG 2V Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 2V 100Ah High capacity range and long service life VRLA batteries
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 16 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-2V100

Nominal voltage:

2V

Capacity @20HR (AH):

105.00 Ah

Capacity @10HR (AH):

100.00 Ah

Weight:

5.8kg / 12.8lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

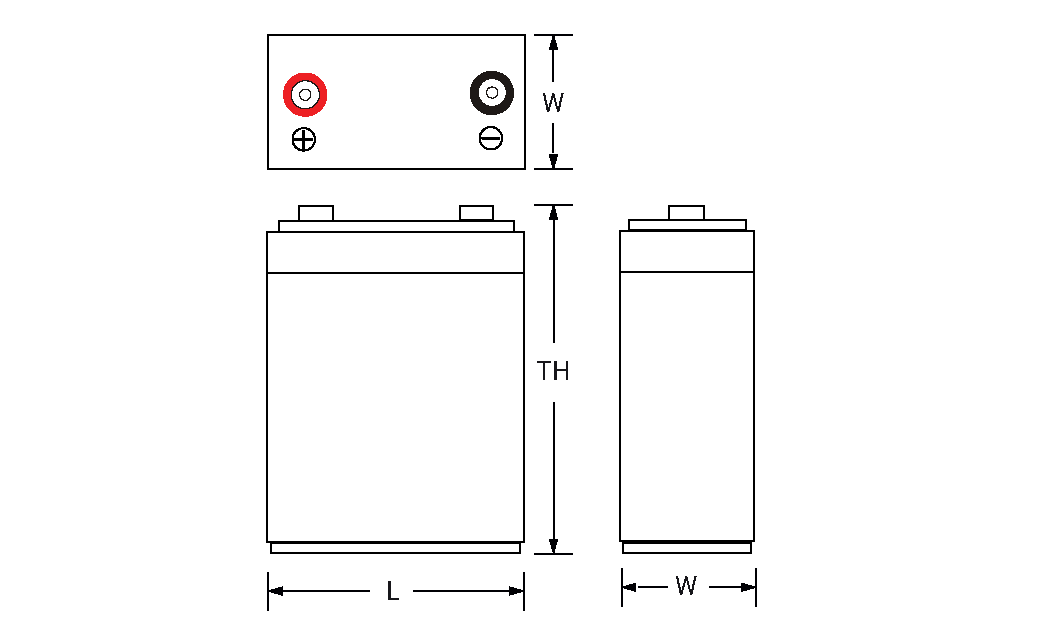

Dimensions

Length:

6.69'' / 170mm

Width:

2.83'' / 72mm

Height:

8.43'' / 214mm

T6
Terminal Info
  • 2V 100Ah High capacity range and long service life VRLA batteries
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 16 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-2V100

Nominal voltage:

2V

Capacity @20HR (AH):

105.00 Ah

Capacity @10HR (AH):

100.00 Ah

Weight:

5.8kg / 12.8lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

6.69'' / 170mm

Width:

2.83'' / 72mm

Height:

8.43'' / 214mm

T6
Terminal Info
Product Image

MODEL SUMMARY

The PG-2V100 is part of our PG 2V series of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical applications that require a longer design life. The 2V 100.00Ah battery offers reliable performance in a large range of applications including utility control, telecommunications and uninterruptible power supply.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
