PGFT-12V110H

PG FT Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 110Ah Long life front terminal VRLA battery
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Thick plate design and efficient gas recombination yield a service life of 10 - 12 years in standby mode
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PGFT-12V110H

Nominal voltage:

12V

Capacity @20HR (AH):

110.00 Ah

Capacity @10HR (AH):

103.80 Ah

Weight:

34.5kg / 76.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

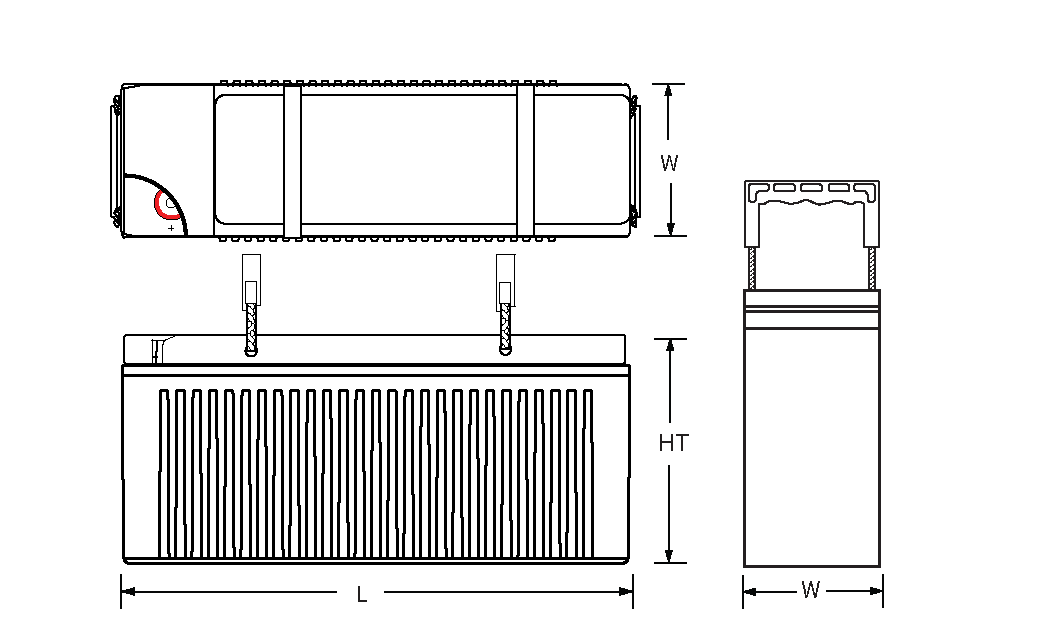

Dimensions

Length:

15.51'' / 394mm

Width:

4.33'' / 110mm

Height:

11.22'' / 285mm

T13
  • 12V 110Ah Long life front terminal VRLA battery
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Thick plate design and efficient gas recombination yield a service life of 10 - 12 years in standby mode
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PGFT-12V110H

Nominal voltage:

12V

Capacity @20HR (AH):

110.00 Ah

Capacity @10HR (AH):

103.80 Ah

Weight:

34.5kg / 76.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

15.51'' / 394mm

Width:

4.33'' / 110mm

Height:

11.22'' / 285mm

T13

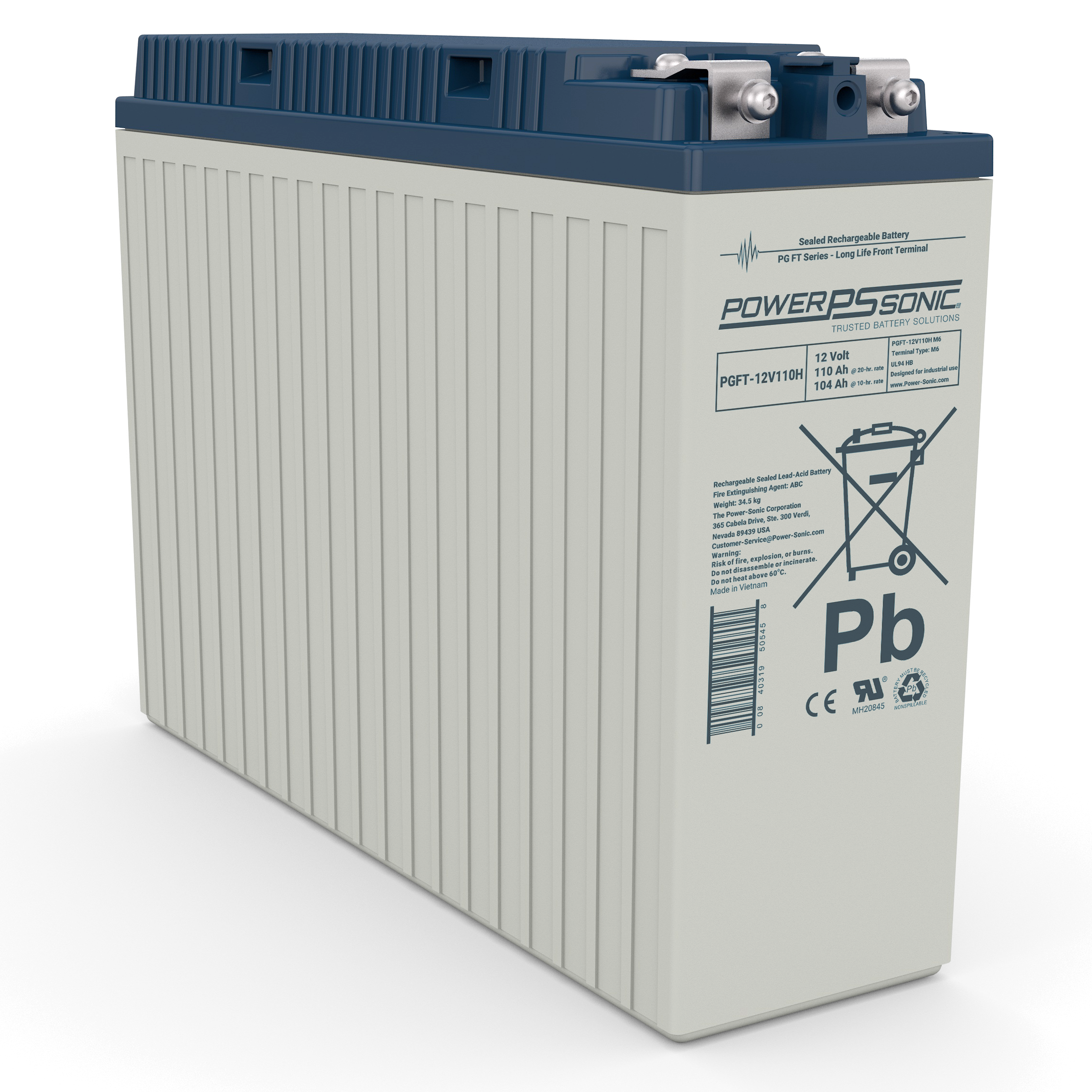

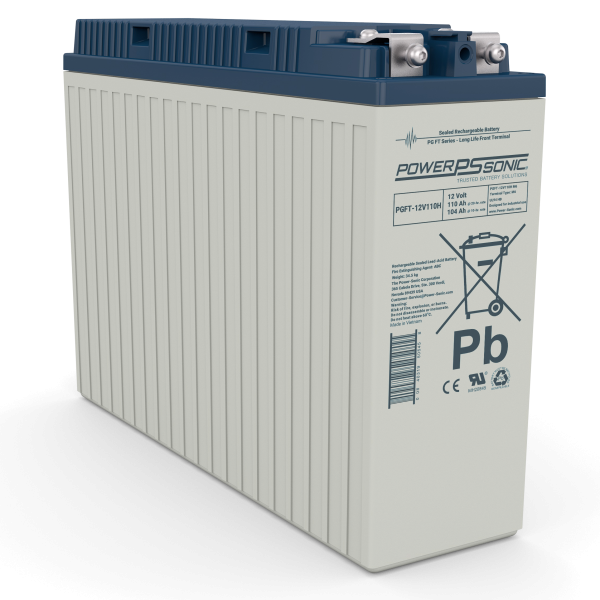

Product Image

MODEL SUMMARY

The PGFT-12V110H is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 110.00Ah front terminal battery offers reliable performance and features easy to use front terminal connection ensuring an ease of installation and maintenance when installed in a battery cabinet. The PGFT-12V110H is ideal for UPS, Telecom and Utility UPS applications.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
