PGFT-12V180

PG FT Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 190Ah Long life front terminal VRLA battery
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Thick plate design and efficient gas recombination yield a service life of 10 - 12 years in standby mode
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PGFT-12V180

Nominal voltage:

12V

Capacity @20HR (AH):

190.00 Ah

Capacity @10HR (AH):

180.00 Ah

Weight:

54.0kg / 119.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

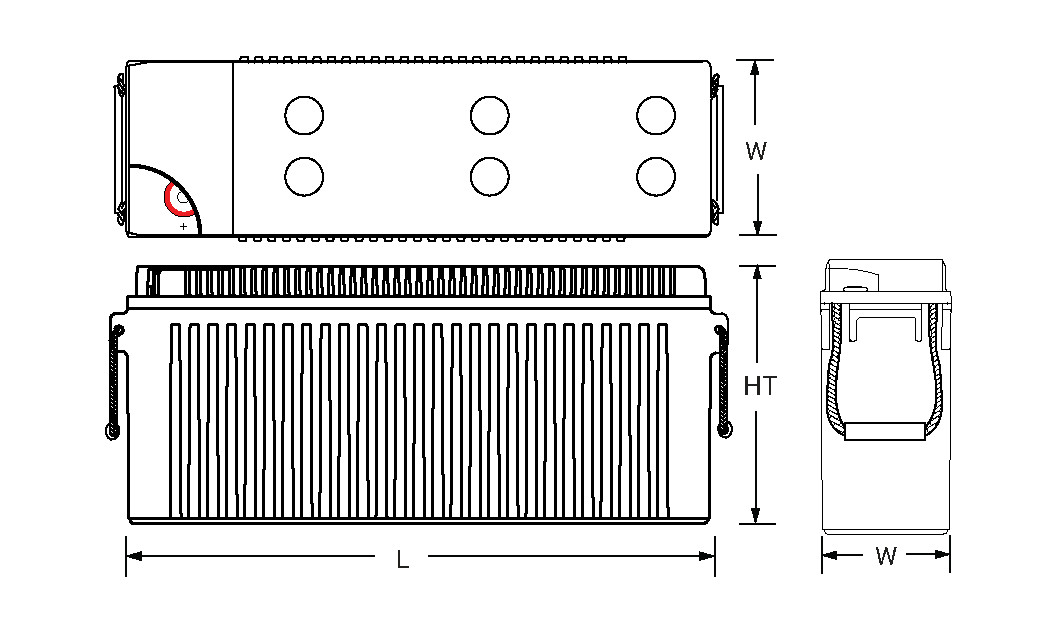

Dimensions

Length:

22.05'' / 560mm

Width:

4.96'' / 126mm

Height:

11.02'' / 280mm

T13
  • 12V 190Ah Long life front terminal VRLA battery
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Thick plate design and efficient gas recombination yield a service life of 10 - 12 years in standby mode
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PGFT-12V180

Nominal voltage:

12V

Capacity @20HR (AH):

190.00 Ah

Capacity @10HR (AH):

180.00 Ah

Weight:

54.0kg / 119.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

22.05'' / 560mm

Width:

4.96'' / 126mm

Height:

11.02'' / 280mm

T13

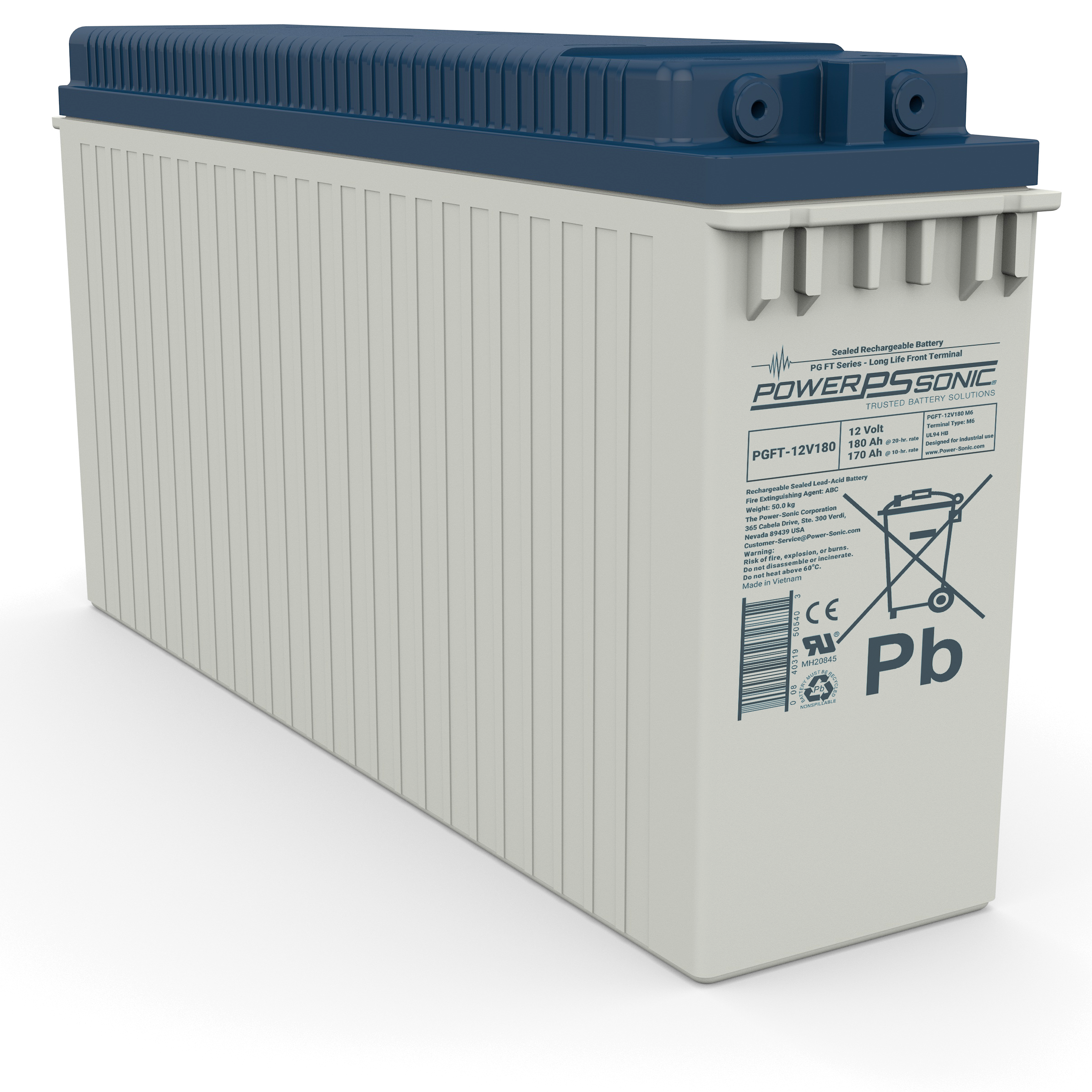

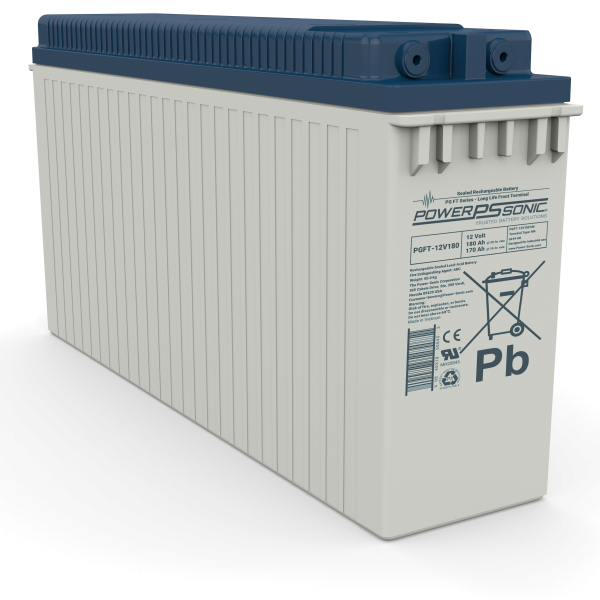

Product Image

MODEL SUMMARY

The PGFT-12V180 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 190.00Ah front terminal battery offers reliable performance and features easy to use front terminal connection ensuring an ease of installation and maintenance when installed in a battery cabinet. The PGFT-12V180 is ideal for UPS, Telecom and Utility UPS applications.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.

certificate certificate
