PowerPure RT 6/10 kVA

PowerPure RT Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Dimensions

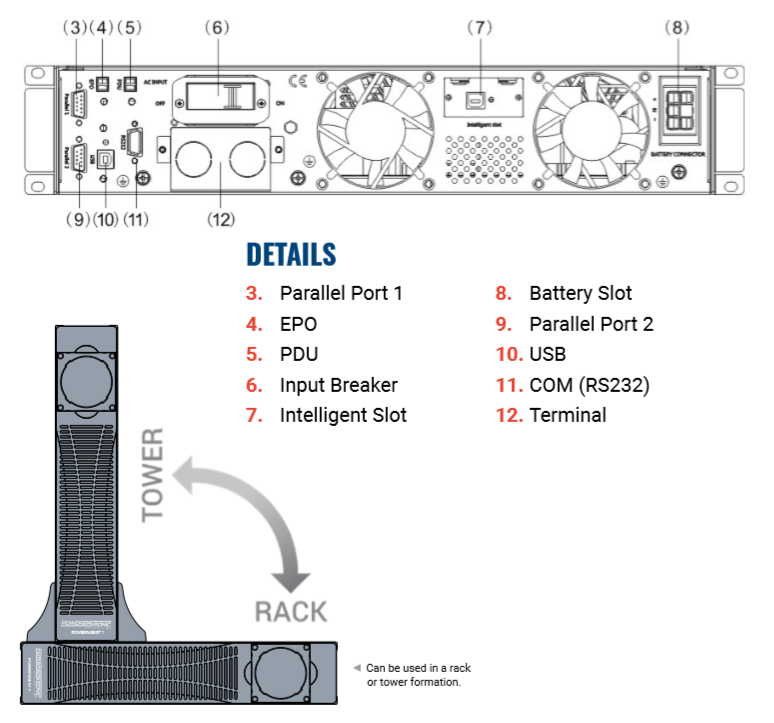

Detail

  • True double-conversion online technology
  • High output power factor at 1.0
  • Convertible rack and tower design
  • High reliability and availability with DSP microprocessor control
  • N+X parallel redundancy (up to 4 units can be set in parallel)
  • Low input current distortion
  • LCD display with multifunction settings
  • Intelligent battery management
Input

Capacity:

6kVA/6000W
10kVA/10000W

Rated Voltage:

208V / 220V /230V / 240VAC

Voltage Range:

120 to 276VAC

Frequency Range:

45-55 Hz

Output

Voltage Range:

208V / 220V / 230V / 240VAC

Voltage Regulation:

±1%

Frequency Range:

50/60 Hz

Waveform:

Sinewave

Harmonic Distortion:

≤2% (linear load)
≤5% (non-linear load)

Overload Capability:

105% ~ 110%: Transfer to Bypass in 10min
110% ~ 130%: Transfer to Bypass in 1mins
>150%: Transfer to Bypass in 200ms

Height

3.40'' / 86.5mm

Width

17.32'' / 440mm

Depth

24.60'' / 625mm

  • True double-conversion online technology
  • High output power factor at 1.0
  • Convertible rack and tower design
  • High reliability and availability with DSP microprocessor control
  • N+X parallel redundancy (up to 4 units can be set in parallel)
  • Low input current distortion
  • LCD display with multifunction settings
  • Intelligent battery management
Input

Capacity:

6kVA/6000W
10kVA/10000W

Rated Voltage:

208V / 220V /230V / 240VAC

Voltage Range:

120 to 276VAC

Frequency Range:

45-55 Hz

Output

Voltage Range:

208V / 220V / 230V / 240VAC

Voltage Regulation:

±1%

Frequency Range:

50/60 Hz

Waveform:

Sinewave

Harmonic Distortion:

≤2% (linear load)
≤5% (non-linear load)

Overload Capability:

105% ~ 110%: Transfer to Bypass in 10min
110% ~ 130%: Transfer to Bypass in 1mins
>150%: Transfer to Bypass in 200ms

Height

3.40'' / 86.5mm

Width

17.32'' / 440mm

Depth

24.60'' / 625mm

Product Image

MODEL SUMMARY

The PowerPure RT series is an online double conversion UPS (uninterruptible power supply) providing reliable sine-wave power for your critical equipment. It supports computers, servers, networks, VoIP and telecommunications. With a 1.0 output power factor the UPS provides 30% additional power at the output when compared to standard 0.7 power factor UPS systems. This means the PowerPure RT can support more critical equipment.

The PowerPure RT series features optional external battery packs that can be connected for longer backup time and added flexibility for future demand, this make it an ideal choice for servers with high power density and input power factor. The PowerPure RT 6 and 10 can be paralleled up to 4 units making it one of the largest single phase UPS solutions on the market.
