PSC-1220000-LIFE-EU

LiFe Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Dimensions

Use with Battery

  • 4-Cell 20.0A lithium iron phosphate battery charger
  • 3-step charge control with current detection
  • Input voltage 198 - 264 VAC
  • Manufactured in Europe with high-quality components
  • Wake up and low current start-up of deeply discharged batteries
  • Alligator clip connectors with insulated sleeves
  • UL, CE and DOE compliant
  • Medically certified EN60601-1 3.1 and EN60601-1-2 4

Nominal voltage:

12.8V

Charge voltage:

14.6V

Output Current:

20000mA

Charger Design:

Plug-in

Charger Type:

3 stage charger

Length:

8.27'' / 210mm

Width:

4.45'' / 113mm

Height:

2.09'' / 53mm

Weight:

1.15kg / 2.53lbs

Voltage:

12.8V

Capacity:

20 - 200 Ah

  • 4-Cell 20.0A lithium iron phosphate battery charger
  • 3-step charge control with current detection
  • Input voltage 198 - 264 VAC
  • Manufactured in Europe with high-quality components
  • Wake up and low current start-up of deeply discharged batteries
  • Alligator clip connectors with insulated sleeves
  • UL, CE and DOE compliant
  • Medically certified EN60601-1 3.1 and EN60601-1-2 4

Nominal voltage:

12.8V

Charge voltage:

14.6V

Output Current:

20000mA

Charger Design:

Plug-in

Charger Type:

3 stage charger

Length:

8.27'' / 210mm

Width:

4.45'' / 113mm

Height:

2.09'' / 53mm

Weight:

1.15kg / 2.53lbs

Voltage:

12.8V

Capacity:

20 - 200 Ah

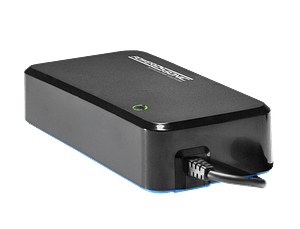

Product Image

MODEL SUMMARY

The PSC-1220000-LiFe-EU is part of our LiFe series of 3-step LiFePO4 battery chargers. The LiFe Series of lithium chargers feature an intelligent 3-step charging logic, which can help charge even the deepest of discharged batteries. To maximize battery performance and battery life, the optimized charging technology makes the best possible use of the capacities of the batteries to be charged. The 4-Cell 20000mA charger has been medically certified to both EN60601-1 3.1 and EN60601-1-2 4 making it the ideal choice for any medical application or anyone looking for a top quality charger.

The PSC-1220000-LiFe-EU battery charger is manufactured in Europe using the the highest quality components and manufacturing processes. This charger has been designed for countries where the voltage sits within the chargers input voltage range of 198 - 264 VAC. If you need help finding the right charger for your lithium battery please check the battery technical specification sheet for the recommended charger or contact us for help.
