PSL-FP-IFR18650PC

PSL-FP Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 3.2V 1.1Ah High performance 18650 LiFePO4 power cell
  • 3.2V 1100mAh rechargeable battery
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Construct custom battery design by connecting two or more cells in parallel and/or series
  • Fast charging and low self-discharge rate
  • Durable steel case material
  • UL 1642 certified
  • UN 38.3 certified

Model Number:

PSL-FP-IFR18650PC

Nominal voltage:

3.2V

Capacity @20HR (AH):

1.1 Ah

Weight:

0.04kg / 0.09lbs

Dimensions

Length:

2.56'' / 65mm

Depth:

0.72'' / 18.2mm

FLAT
  • 3.2V 1.1Ah High performance 18650 LiFePO4 power cell
  • 3.2V 1100mAh rechargeable battery
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Construct custom battery design by connecting two or more cells in parallel and/or series
  • Fast charging and low self-discharge rate
  • Durable steel case material
  • UL 1642 certified
  • UN 38.3 certified

Model Number:

PSL-FP-IFR18650PC

Nominal voltage:

3.2V

Capacity @20HR (AH):

1.1 Ah

Weight:

0.04kg / 0.09lbs

Dimensions

Length:

2.56'' / 65mm

Depth:

0.72'' / 18.2mm

FLAT

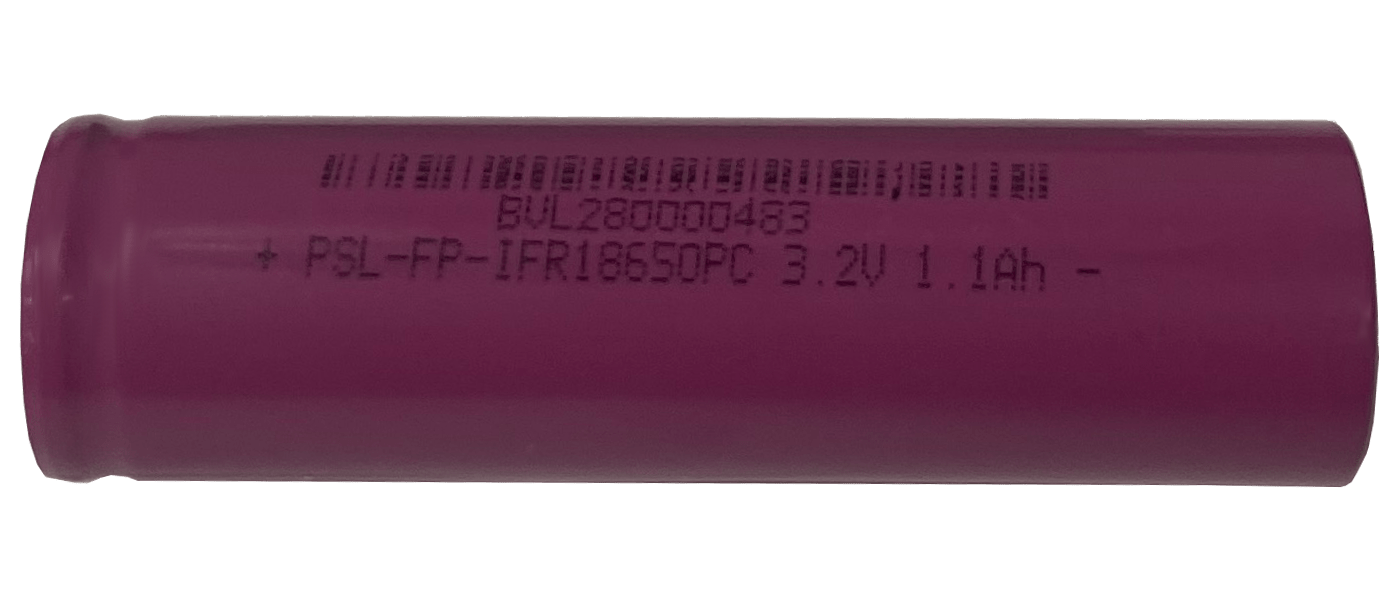

Product Image

Power Sonic also supply a 18650 LiFePO4 Energy Cell

MODEL SUMMARY

The PSL-FP-IFR18650PC is part of our PSL-FP range of Lithium Iron Phosphate (LiFePO4) cells. With high efficiency and ultra-fast charging and discharging the 3.2V 1.1Ah 18650 cylindrical power cell is ideal for a variety of industrial applications where a long-life span and quick charging capabilities are needed. With a button terminal the 18650 LiFePO4 battery cell provides different options for configuration. Delivering 2000 cycles at 100% depth of discharge (DoD). The PSL-FP-IFR18650PC is a power cell. Power cells are designed to deliver high current loads over a short period of time, making them ideal for use in high rate and starter applications including hybrid vehicles, electric bicycles, golf trolleys, energy storage and much, much more.

Power Sonic's LiFePO4 cells are a much safer option than other battery technologies such as LiCoO2 and manganese. Our 18650 battery cells have excellent thermal and chemical stability and can discharge within a temperature range of -20°C to 60°C.

certificate certificate
